What is VM operating supply current?

Hi Yunlong,

The current through each winding flows through the external FETs, and does not flow through the DRV8711.

The Ivm current is generally the current when the device is awake, the outputs are enabled with no motor connected.

To set the rated current of your stepper, use the formula on page 13. The

Hi Rick, Thank you for your answer. I find that I still cannot understand Ivm.

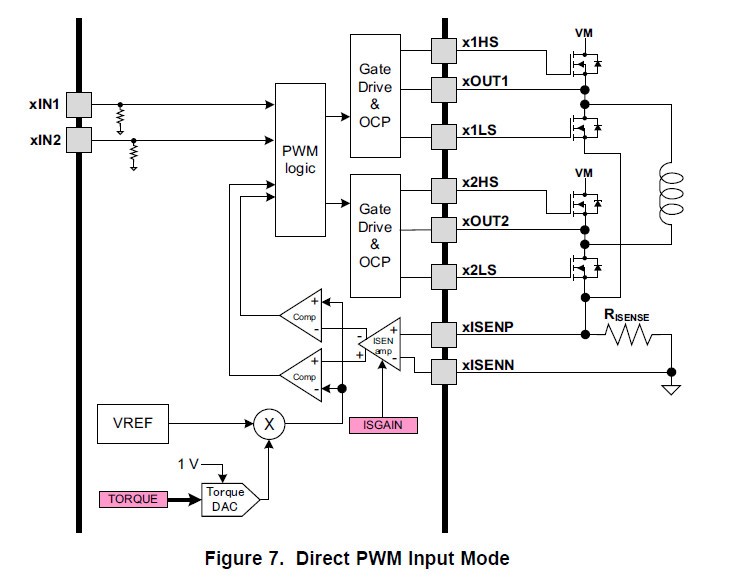

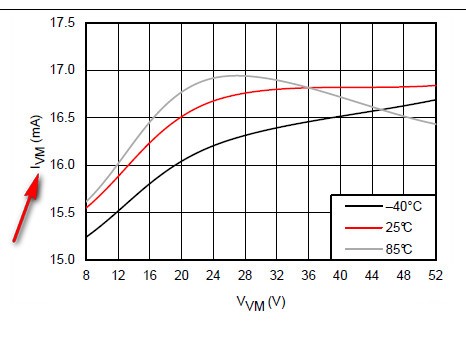

Could you explain Ivm current using the following figure?

What is the path that Ivm flow through ?

Thank you.

Hi Yunlong,

Here the Ivm only means all the current goes from the power supply into the VM pin of DRV8711, not counting in the branch of motor current through MOSFETs.

This Ivm is powering all the internal circuits and functions of DRV8711 including the charge pump, gate driver, LDO, logic core, comparators, DAC, and etc.
