DRV8662 first-order & Second-order filter formula

Eric Chen4

Expert 2370 points

Other Parts Discussed in Thread: DRV8662

Hi,

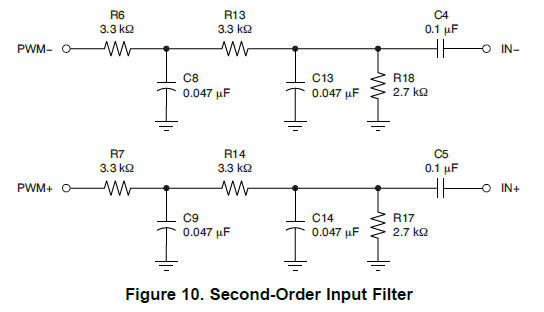

May I know what's DRV8662 filter formula for first-order & Second-order schematic design as below?

Thanks.

over 10 years ago

0 Rodney Miranda over 10 years ago

TI__Expert 3280 points

Hello Eric,
These transfer functions can get pretty complex when you start working through the Laplace math. Have you tried running a simulation in TINA or spice?

Could you describe what you are trying to do?

0 Eric Chen4 over 10 years ago in reply to Rodney Miranda

Expert 2370 points

Hi Miranda,
We will use Filter frequency range from 2.5KHz to 5KHz or 2.5KHz to 4KHz then to reduce Piezo operation noise.
If have better method to design the RC value without using TINA try & error?
Thanks your suggestion.

Best Regards,
Eric

0 Rodney Miranda over 10 years ago in reply to Eric Chen4

TI__Expert 3280 points

Eric,
The ones that you showed above are the simple 2 pole low pass filter that is tuned using the cut off frequency or 3dB point equations (2*pi*R*C)^(-1). If an active filter is what you are looking for, then here is a good reference www.ti.com/.../sloa049b.pdf.

Hope this helps.
