Circuit is Not working

Abhishek Gupta4

Prodigy 90 points

Other Parts Discussed in Thread: DRV8848

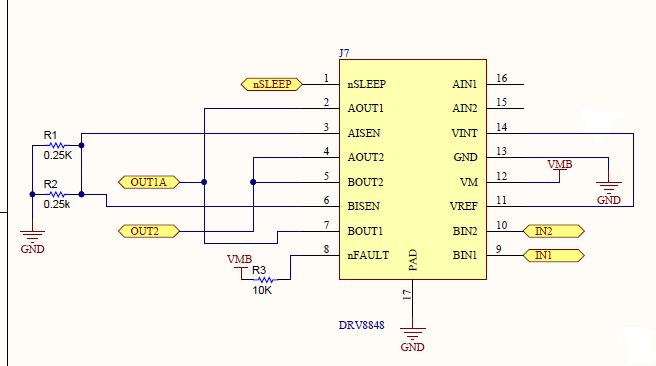

Hi, I'm using DRV8848. Desing a schematic but its not working please help me to find out mistake.

Thanks

Abhishek

over 9 years ago

0 Wilson Zuo over 9 years ago

TI__Mastermind 26065 points

Hi Abhishek

I don't see VM bulk caps which is very important for motor driver device. Also need decoupling cap to VINT. Please follow the sch layout example in datasheet.

Then please note the condition to correctly entering into parallel mode your are using.

Best regards,

0 Rick Duncan over 9 years ago in reply to Wilson Zuo

TI__Guru** 114905 points

Hi Ashishek,

In addition to Wilson's comments, what is the VMB voltage? If it is greater than 7V, the Absolute maximum rating of the nFAULT pin is being violated.
