DRV8813: The part DRV8813 meets OCP problem

Frank Xiao

Genius 12055 points

Part Number: DRV8813

Hi team,

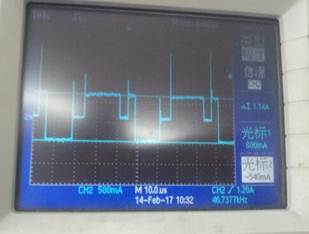

My customer is using the part DRV8813 now and meets the FAULT problem when do the motor line hot swap. The current waveform is below.

Although the action is not recommended, but the OCP time seems not to exceed the blank time 3.75us. So why the it meets fault or why it meets OCP.

Thank you.

Frank

0 Phil Beard over 8 years ago

Hi Frank,

Have you measured the voltage on the OUT pins when you perform this hot swap?
What is the VM voltage when this FAULT occurs?

0 Frank Xiao over 8 years ago in reply to Phil Beard

Hi Phil,

Please kindly check the waveforms below.

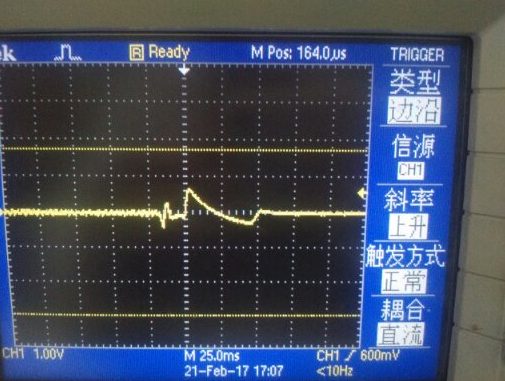

The DC value of VM is 24v.The AC waveform of VM is below.

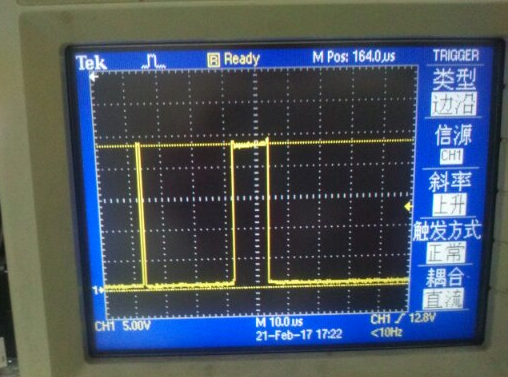

The OUT to GND waveform is below:

Frank
