DRV8834: DRV8834's power consumption

user5007751

Part Number: DRV8834

when step pin no pulse input (push-pull output low) and nsleep pin is high leve,Current flows through DRV8834 up to 790mA.

stepper motor internal resistance：10Ω

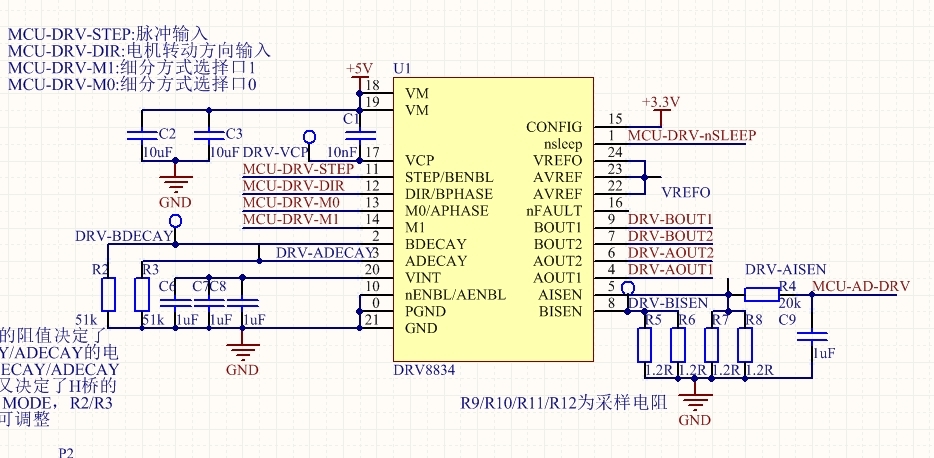

circuit diagram is as follow：

Power supply 5V.

over 8 years ago

0 Rick Duncan over 8 years ago

TI__Guru** 114905 points

Hi user5007751,

What is your question?
If driving a stepper motor, there will be current once the device is enabled.

0 user5007751 over 8 years ago in reply to Rick Duncan

Prodigy 40 points

Hi,
You mean if enable the DRV8834, when step pin no pulse input (push-pull output low)，H bridge will also open,So there's a big current here?

0 Rick Duncan over 8 years ago in reply to user5007751

TI__Guru** 114905 points

Hi user5007751,

Correct. When the device is set to indexer mode (CONFIG = high) and nENBL = low, the outputs are active.

If you do not want the current, set nSLEEP to low or change the nENBL connection to add mcu control.

0 user5007751 over 8 years ago in reply to Rick Duncan

Prodigy 40 points

thks
