DRV8843EVM: Motor Not stepping

James Bond

Intellectual 380 points

Part Number: DRV8843EVM

Hi I don't see motor movement when pressing the step button.

the set up is as follows:

scope connected to motor A+ and B+ (only one of the motor phases is being modulated).

Reset/sleep check box's are checked

Motor is connected to J3

motor voltage = 20v.

The current is set to 1 A. the board jumper set to the default.

Did I miss something?

The application provided does not support the DRV8843, is an update available.

thanks

over 7 years ago

0 Rick Duncan over 7 years ago

TI__Guru** 114905 points

Hi James,

Have you checked the control signals at the test points? There have been reports that the control signals can be out of sync with the GUI when initially opened.

Can you clarify your statement "The application provided does not support the DRV8843"?

0 James Bond over 7 years ago in reply to Rick Duncan

Intellectual 380 points

Hi A tab to select a 8843 is not provided.
Interfacing between the MCU and DRV 8824/8843 differ.

0 Rick Duncan over 7 years ago in reply to James Bond

TI__Guru** 114905 points

Hi James,

Is there a tab for the DRV8841-43? Can you provide a screen capture of the GUI?

0 James Bond over 7 years ago in reply to Rick Duncan

Intellectual 380 points

thanks

0 James Bond over 7 years ago in reply to James Bond

Intellectual 380 points

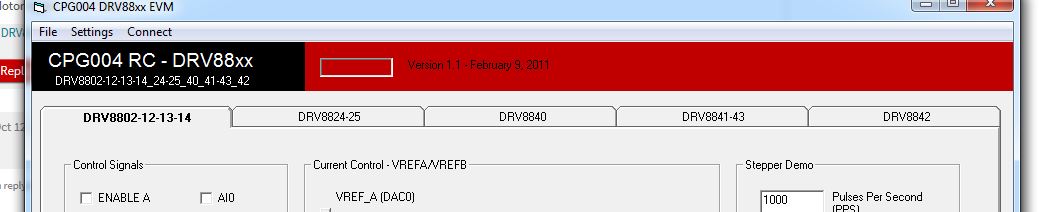

Second try, a tab is not available to select the 8843

0 James Bond over 7 years ago in reply to James Bond

Intellectual 380 points

Hi Rick

thanks

0 Rick Duncan over 7 years ago in reply to James Bond

TI__Guru** 114905 points

Hi James,

The DRV8841-43 tab should be used to control the either the DRV8841 or DRV8843. If you select this tab, does it work?
