DRV110EVM: Dimensions of the PCB board and holes positions

Luc Beaulieu

Part Number: DRV110EVM
Other Parts Discussed in Thread: DRV120EVM

Hi,

Can I get the DRV110EVM and DRV120EVM board dimensions ?

Also, need fixation holes positions and dimensions.

Better will be to have a CAD .DXF file.

Regards,

Luc

0 Grant Falkenburg over 7 years ago

Hi Luc,

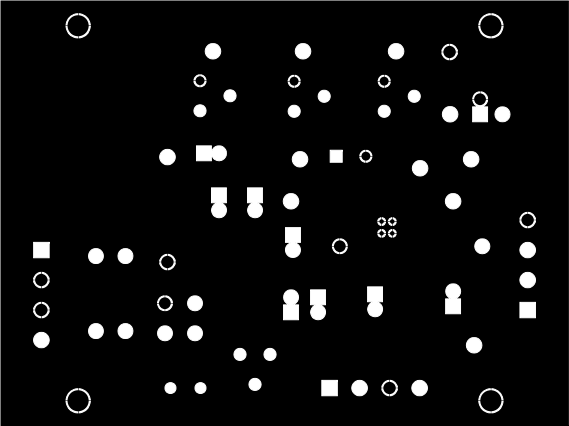

Thanks for your question. The board is 3.8 inches by 2.85 inches. Here is a diagram of the hole locations.

Does this answer your question?

Best,

Grant

0 Luc Beaulieu over 7 years ago in reply to Grant Falkenburg

Yes, I think I could manage to find the hole location with the picture knowing the overall dimensions.

Thanks,

0 Grant Falkenburg over 7 years ago in reply to Luc Beaulieu

Luc,

Great. Please let me know if you have any further questions.

Best,
Grant
