DRV8801: wiring between motor driver and PWM generator

user4849504

Part Number: DRV8801
Other Parts Discussed in Thread: TLC5951, DRV8881, ,

Hi,

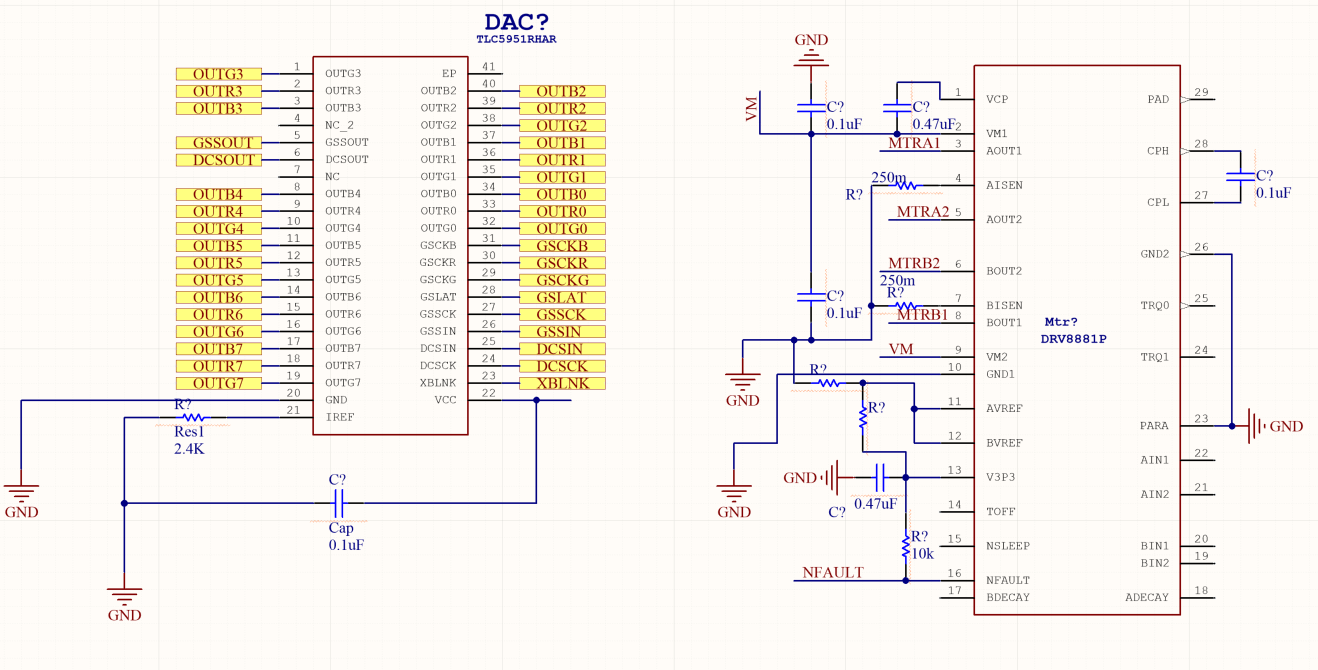

I am working on the schematic of the DRV8881 motor driver and I was wondering that should I have to connect any pins to PWM generator? I have TLC5951 PWM generator on PCB.

Thanks!

Regards,

Farinaz

over 7 years ago

0 Rick Duncan over 7 years ago

TI__Guru** 114905 points

Hi Farinaz,

If you intend to control the speed of the motor, the PWM generator should be connected.

The PWM signal is typically connected to the ENABLE pin.

Please refer to the DRV8801EVM as an example.

0 user4849504 over 7 years ago in reply to Rick Duncan

Intellectual 270 points

Hi Rick,

Thanks for the reply!

It is strange, my motor driver doesn't have ENABLE pin. In this case, which pin of PWM generator should be connected to which pin of motor driver?

Thanks in advance for your help!

Regards,

Farinaz

0 Rick Duncan over 7 years ago in reply to user4849504

TI__Guru** 114905 points

Hi Farinaz,

Sorry I read DRV8801 in the title and not the DRV8881 in the subject. And you are using the DRV8881P, which does not have ENx pins like the DRV8881E.

For the DRV8881P, typically you will want to set one input high and PWM the other to switch between Forward/Reverse and Brake. Table 2 describes the control interface for the DRV8881P.

0 user4849504 over 7 years ago in reply to Rick Duncan

Intellectual 270 points

Hi Rick,

Thank you so much for the help!!
Sorry on the title of the post I had typo for the driver's name.

Regards,
Farinaz
