DRV8432: OC-ADJ resistor outer specifications

Vitali Lach

Part Number: DRV8432
Other Parts Discussed in Thread: DRV8702-Q1, DRV8703-Q1, DRV8701

Hello,

our customer is successfully using DRV8432 in his application and would like to ask to use a 16K resistor as OC-ADJ-resistor, to obtain more output current. Is that possible?

Many thanks in advance.

Best Regards

Vitali Lach

over 7 years ago

0 Vitali Lach over 7 years ago

Expert 1130 points

I forgot to write it: the driver is in 1PFB-Mode in this application.

0 Rick Duncan over 7 years ago in reply to Vitali Lach

TI__Guru** 114905 points

Hi Vitali,

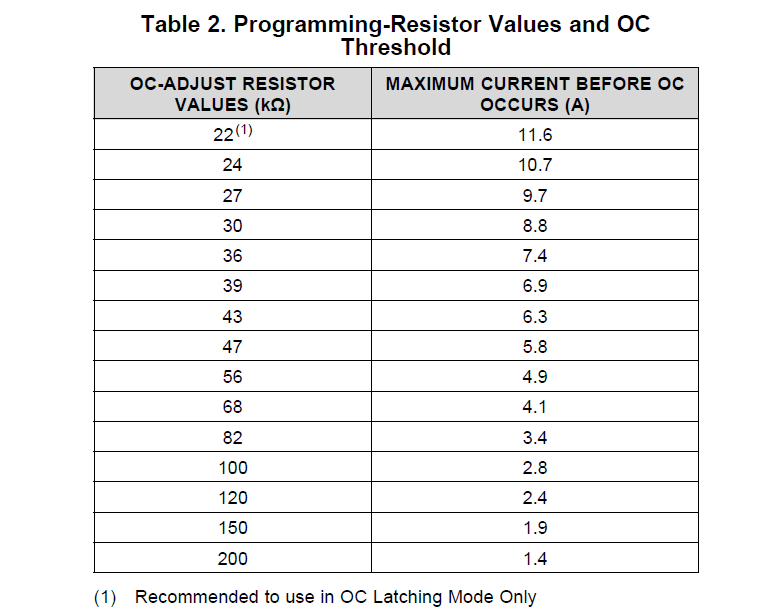

The current values listed in Table 2 are per bridge. A 24k OC_ADJ resistor is ~21.4A peak current. This varies due to any mismatch in the two bridges.

If you need more current, please consider a gate driver like the DRV8701, DRV8702-Q1, or DRV8703-Q1. These devices allow you to select the FETs.

0 Vitali Lach over 7 years ago in reply to Rick Duncan

Expert 1130 points

Hello and thank you very much!
