DRV8302: Regarding the current shunt amplifiers

Nor Muzakkir Nor Ayob

Part Number: DRV8302

Hi,

Why is the output of the current amplifier (in this case SO1) shuts down? What may have an impact on shutting down SO1? I have two similar boards using DRV8302, and currently am studying why one of the boards is not powering the motor. Found out that the good board have steady SO1 output, while the bad board, just few seconds after powering up, the SO1 output will slowly go low.

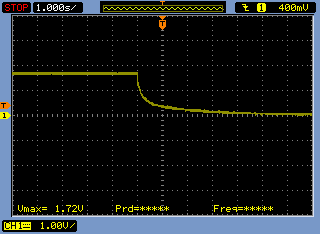

SO1 output gradually goes down after powering the board.

Please help advise, thank you.

over 7 years ago

0 Rick Duncan over 7 years ago

TI__Guru** 114905 points

Hi Nor,

I am assuming these two boards are identical custom boards. Is that correct?

If so, please:
1) confirm you have a proper connection to the Power Pad. without this connection the device will not operate properly
2) perform an A/B comparison of all input and power pins to confirm the signals and voltages match
3) perform an A/B comparison of all outputs to confirm the signals match

0 Nor Muzakkir Nor Ayob over 7 years ago in reply to Rick Duncan

Prodigy 70 points

Yes they are identical custom boards.

Okay noted, will absolutely do that and update.

Thank you.

0 Rick Duncan over 7 years ago in reply to Nor Muzakkir Nor Ayob

TI__Guru** 114905 points

Hi Nor,

I haven’t heard back from you, I’m assuming you were able to resolve your issue. If not, just post a reply below (or create a new thread if the thread has locked due to time-out)
