DRV8353Rx-EVM kit Refference design files

Rohit Togale

Other Parts Discussed in Thread: MOTORWARE, CONTROLSUITE, DRV8353

Hi ,

I would like to know how is the control scheme for the MOTOR or where can i get the block diagram for this refference design.(DRV8353RH)

Thanks

Rohit

over 6 years ago

0 Adam Sidelsky over 6 years ago

TI__Guru 65170 points

Rohit,

The motor control is lab 05b of motorware, you can find info here: www.ti.com/.../MOTORWARE

Once you install the software, launch it and go to the Lab User's guide where you will see many many details on the architecture.

Regards,

-Adam

0 Rohit Togale over 6 years ago in reply to Adam Sidelsky

Intellectual 320 points

Hi ,

Thanks for the responce ...!

As you mention above i have downloaded the MOTORWARE but in that Kit DRV8353RH related files such as example codes not there. We want to interface DRV8353RH kit with the BLDC motor which has hall sensor output from motor.Please let us from where we can get reference code.So we can proceed further......!!!

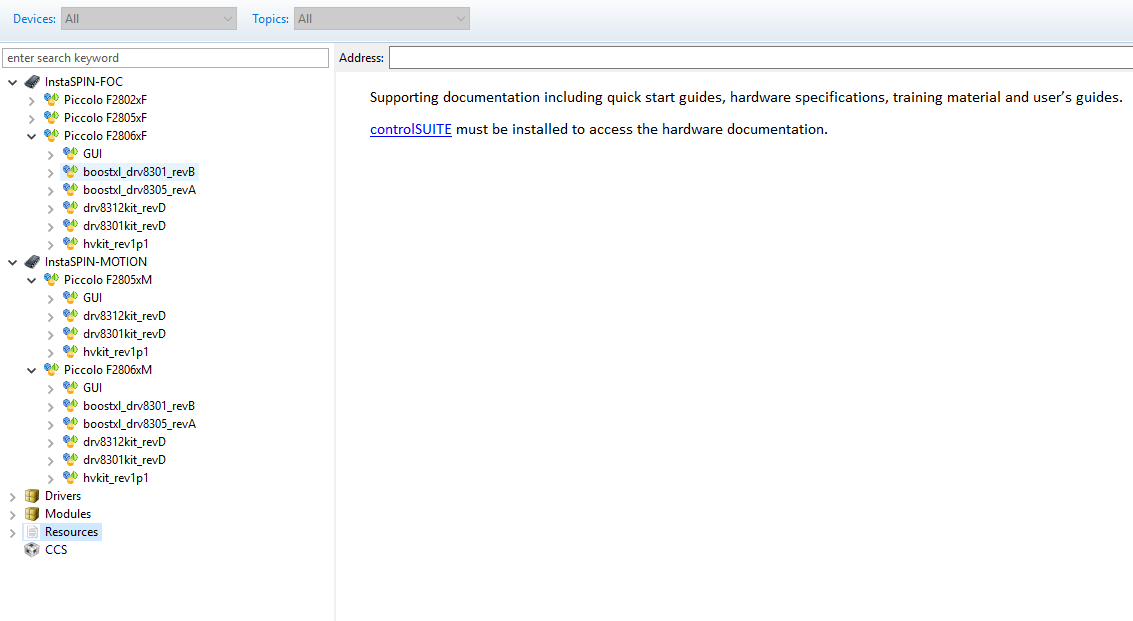

Please find the attached Image

Thanks,

Rohit

0 Adam Sidelsky over 6 years ago in reply to Rohit Togale

TI__Guru 65170 points

Rohit,

As mentioned in the error message, you will need to install controlSUITE to receive access. You can download it here:

www.ti.com/.../controlsuite

Regards,

-Adam

0 Rohit Togale over 6 years ago in reply to Adam Sidelsky

Intellectual 320 points

Hi Adam,

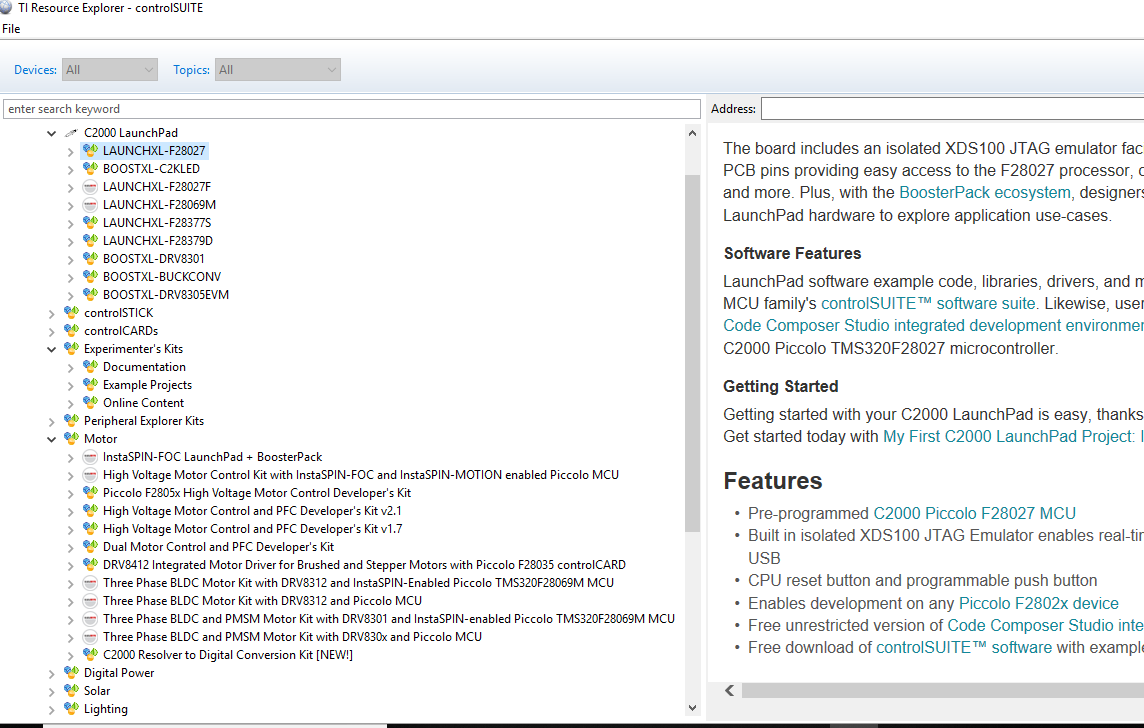

I have installed the controlSUITE, Please find the image i have attached.I'm not able to find the DRV8353 kit related examples.

"DRV8353Rx-EVM InstaSPIN™ Software Quick Start Guide" in this guide its mention DRV8353RX.1.0.0 WINDOWS INSTALLER , How to download this file or where i can get it ?

Regards

Rohit Mohan Togale

0 Adam Sidelsky over 6 years ago in reply to Rohit Togale

TI__Guru 65170 points

Rohit,

It's on the EVM tool folder here: www.ti.com/.../getliterature.tsp

Regards,

-Adam
