DRV8320: Ipulldown in smart gate driver

na na78

Guru 16770 points

Part Number: DRV8320

We can refer following blog and it offers Ipulldown at figure 4.

https://e2e.ti.com/blogs_/b/motordrivecontrol/archive/2016/07/18/what-is-a-smart-gate-drive-architecture-part-2

How to realize this strong pull down?

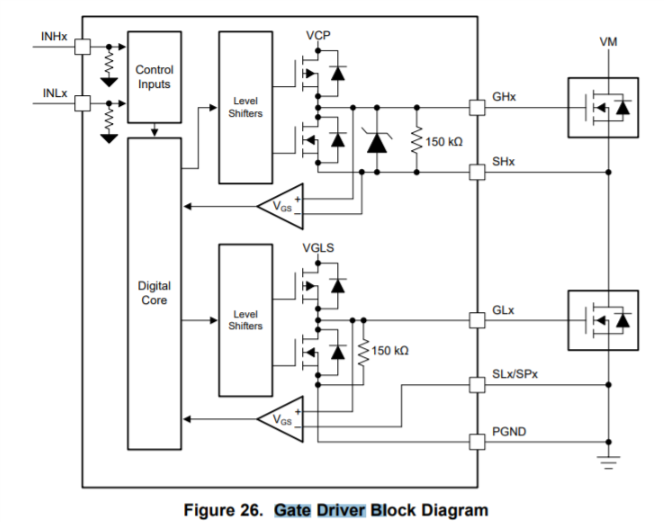

Does the strong pull down mean the internal pull down resistor shown as 150Kohm in following block diagram?

BestRegards

over 6 years ago

0 Adam Sidelsky over 6 years ago

TI__Guru 65320 points

Hello,

Strong Pull Down usually means an active FET internal to the device is pulling down the Gate of the output FET. A resistive pulldown, especially as high as 150k is not considered a strong pull-down.

Regards,

-Adam

0 na na78 over 6 years ago in reply to Adam Sidelsky

Guru 16770 points

Hi Adam

Thank you for your reply.

>Strong Pull Down usually means an active FET internal to the device is pulling down the Gate of the output FET.

Do you mean that it is defined by Istrong (=2A)?

BestRegards

0 Adam Sidelsky over 6 years ago in reply to na na78

TI__Guru 65320 points

Yes that is correct.
