DRV8305-Q1: Watchdog Fault

hideyuki sakai

Mastermind 6250 points

Part Number: DRV8305-Q1

Dear, Sir.

The datasheet described on once the watchdog fault occurred DRV8305-Q1 & gate driver are put

into a safe state. However, the detail of the safe state is not explained the detail .

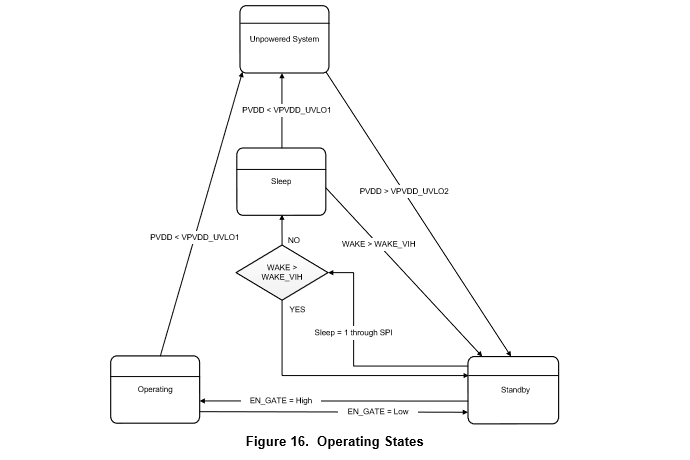

I wonder the safe state means the Standby mode on Figure 16. Operating States?

Please give your advice.

Best Regards,

H. Sakai

over 6 years ago

0 Garrett Walker over 6 years ago

TI__Intellectual 2595 points

Hi Sakai-san,

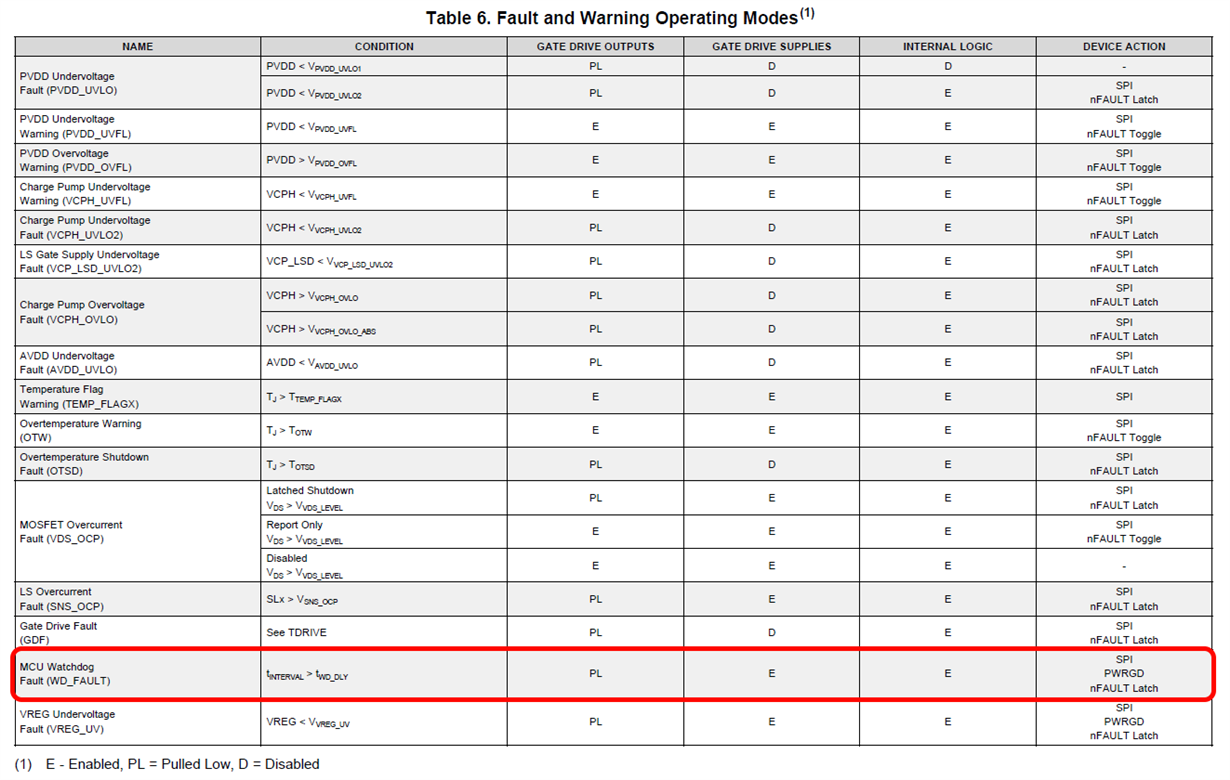

The safe state is detailed in Table 6 (Fault and Warning Operating Modes). When the MCU Watchdog Fault occurs, the gate drive outputs are pulled low, but the gate drive supply (charge pump) and internal logic stay enabled. The fault is indicated through SPI, PWRGD, and nFAULT.

Thanks,

Garrett

0 hideyuki sakai over 6 years ago in reply to Garrett Walker

Mastermind 6250 points

Dear, Garrett-san.

Thank you so much for your valuable information.

I would like to make sure about the behavior of /FAULT output.
Please give your advice, again.
I think ;
When watchdog Fault occurred, /FAULT H=>L.
Keep L until Resister 0x9 bit1(CLR_FLTS) write to 1, then /FAULT L=>H.
I wonder my assumption is correct?

Best Regards,
H. Sakai

0 Garrett Walker over 6 years ago in reply to hideyuki sakai

TI__Intellectual 2595 points

Hi Sakai-san,

Sorry I missed this follow-up question. Your understanding is correct.

Thanks,
Garrett
