DRV8301: DRV8301-HC-EVM Rev D kit_drv8301_buckconverter

Kwan Hyoung Lee

Intellectual 860 points

Part Number: DRV8301
Other Parts Discussed in Thread: TPS54160

I have a DRV8301-HC-EVM Rev D kit. and I have a circuit of DRV8301-HC-EVM Rev D kit.

I wonder why kit'circuit didn't use buckconverter of drv8301.

over 6 years ago

0 Anuj Narain over 6 years ago

TI__Intellectual 1345 points

I believe your question is why the DRV8301-HC-EVM Rev D kit does not use the VCC_5V output directly. The control card supports a 3.3V MCU which is the reason there is an additional LDO on the board to step down to 3.3V

0 Kwan Hyoung Lee over 6 years ago in reply to Anuj Narain

Intellectual 860 points

I understand that buckconverter output 3.3V is possible in drv8301.
I wonder why kit'circuit didn't use buckconverter of drv8301.

0 Anuj Narain over 6 years ago in reply to Kwan Hyoung Lee

TI__Intellectual 1345 points

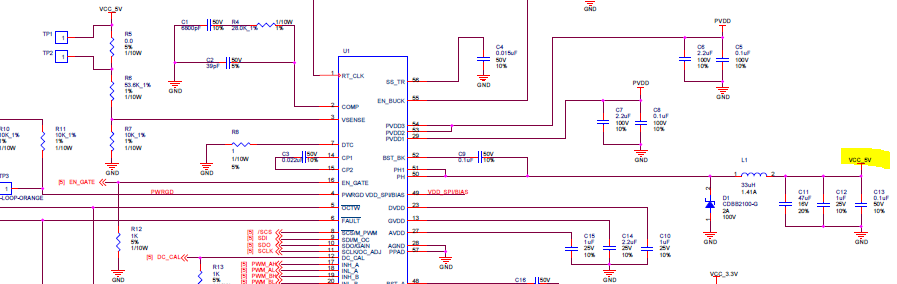

Perhaps, I don't understand the question clearly so maybe a picture is better . The VCC_5V is generated by the buck converter.

There are no restrictions on using the buck converter. You may refer to the datasheet of TPS54160 for details on the buck converter that is in DV8301

0 Kwan Hyoung Lee over 6 years ago in reply to Anuj Narain

Intellectual 860 points

The following is part of DRV8301 pin datasheet.

PH 50,51, O, The source of the internal high side MOSFET of buck converter.

Q1. where is the internal high side MOSFET?
Q2. I think PH pin is output pin. Is that right?

Thank you for your detailed explanation.

0 Anuj Narain over 6 years ago in reply to Kwan Hyoung Lee

TI__Intellectual 1345 points

Q1. where is the internal high side MOSFET?
Ans : inside the buck converter
Q2. I think PH pin is output pin. Is that right?
Ans : Yes, correct.
