DRV8308EVM: Unable to run the motor

abhiram VISHNU

Prodigy 110 points

Part Number: DRV8308EVM
Other Parts Discussed in Thread: DRV8308

I am not able to run the motor in any of the modes. When ever i click enable in the GUI, FAULTn lights up.

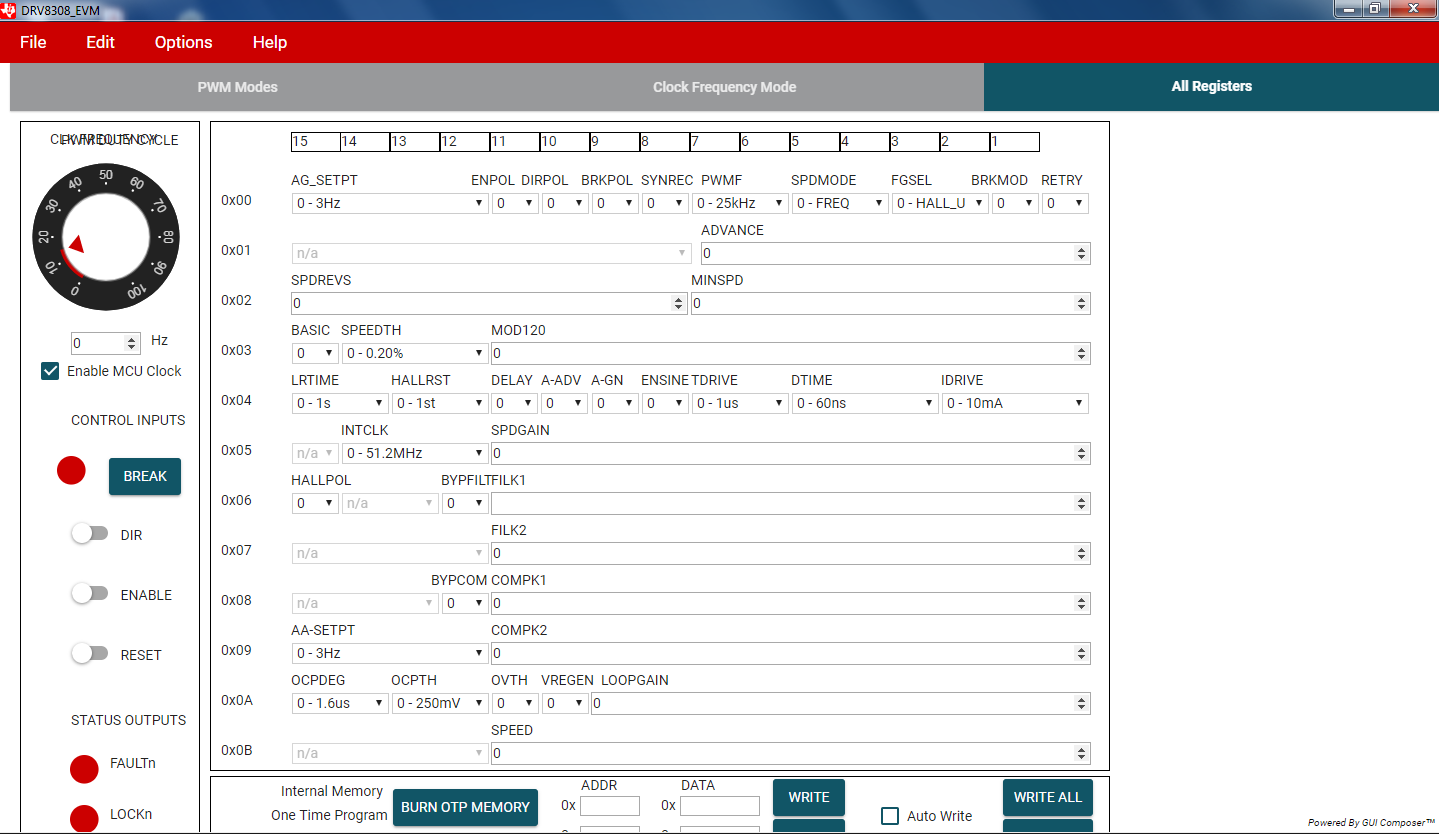

These are some of the screenshots

Thank You

over 6 years ago

0 Adam Sidelsky over 6 years ago

TI__Guru 65250 points

Abhiram,

Please use the following GUI and let me know if it works: dev.ti.com/.../DRV8308

Also please make sure you follow the User's Guide: www.ti.com/.../slvua41f.pdf

Regards,

-Adam

0 abhiram VISHNU over 6 years ago in reply to Adam Sidelsky

Prodigy 110 points

Hi Adam

The motor working fine with already installed GUI. I was able to spin the motor in the OPEN LOOP PWM MODES ie with clock from from the microcontrolller as well as from the register SPEED and in SPEED CONTROL MODE (closed loop control). But after a few hours when i again checked the working, the FAULTn light in the DRV8308 EVM board is lighting up and the motor had a jerking motion. I don't think its the problem with the GUI as the motor was spinning in both the modes earlier.

Thank You

0 abhiram VISHNU over 6 years ago in reply to abhiram VISHNU

Prodigy 110 points

Adam

I tried with the new GUI and still the motor is not spinning

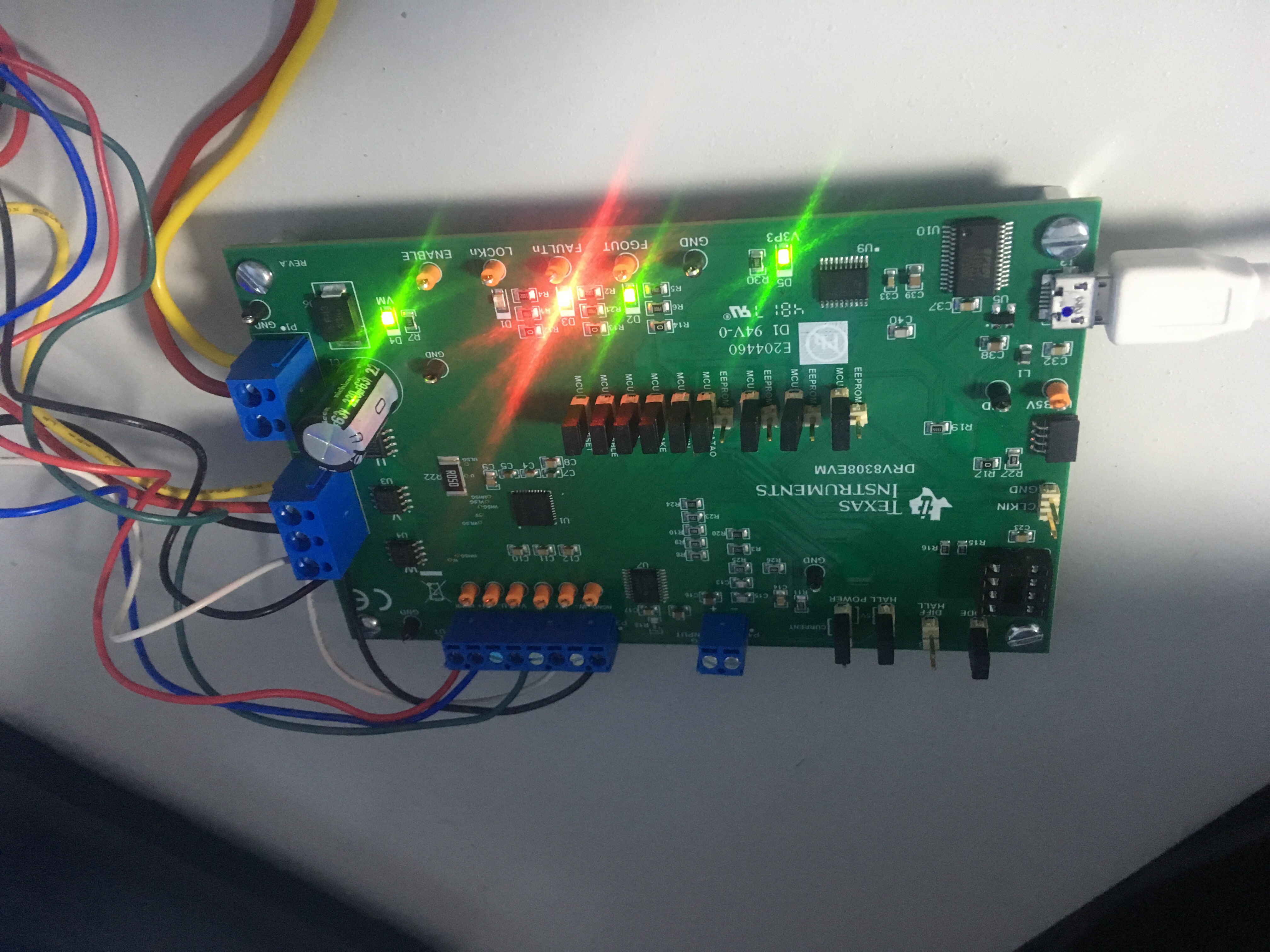

I am attaching a photograph of the EVM when enable is turned on.

Thank you

0 Adam Sidelsky over 6 years ago in reply to abhiram VISHNU

TI__Guru 65250 points

Abhiram,

Have you tried restarting your PC, removing EVM USB and power, reconnecting everything, and starting the GUI again?

Regards,

-Adam

0 abhiram VISHNU over 6 years ago in reply to Adam Sidelsky

Prodigy 110 points

Adam

I have tried restarting my PC, removinG EVM USB, Power and reconnecting everything , and starting the GUI again. Still the motor is not spinning and immediately after clicking enable the FAULTn is lighting up.

Thank You

Abhiram
