DRV8306: Basic operation

user5933712

Part Number: DRV8306

The Internal regulator is not output(DVDD 26pin) even though the VM is supplied(15V).

Would you please let me know the cause of that?

Actually, the load current of the main power supply is almost zero, and nFAULT is low at the time(immediately after power on).

I'd appreciate your help.

Best and Regards,

Sango

over 7 years ago

0 Adam Sidelsky over 7 years ago

TI__Guru 66550 points

Sango,

Is your Enable pin high? It sounds like the device is in the low power sleep mode.

Regards,

-Adam

0 user5933712 over 7 years ago in reply to Adam Sidelsky

Prodigy 90 points

Adam

It's pull up by 10kohm. Is it ok?

If device is in the low power sleep mode, would you please let me know how it can waken?

Best and Regards,

Sango

0 Adam Sidelsky over 7 years ago in reply to user5933712

TI__Guru 66550 points

Sango,

I would use a switch or MCU pin to pull up this ENABLE signal high, I would not install a permamnent pull-up as this would not allow the device to be shut down when needed.

10k is probably too large, I would use 1k.

Regards,

-Adam

0 user5933712 over 7 years ago in reply to Adam Sidelsky

Prodigy 90 points

Dear Adam,

Thanks for your kind suggestion.

Actually, I use 10k for all PU/PD(eq. Hall sensor input), I'll change it.

Then, I also connect ENABLE to MCU pin.

I will report later if it works well.

I'd appreciate your help.

Best and Regards,

Sango

0 user5933712 over 7 years ago in reply to Adam Sidelsky

Prodigy 90 points

Adam,

Sorry for reporting late.

I can activate DRV8306 by making ENBLE signal high.

But it doesn't work well yet.

I connected HNx directly to the ground for single end operation.

Is it correct?

The hall sensors are Open drain type.

I install the pull up register.

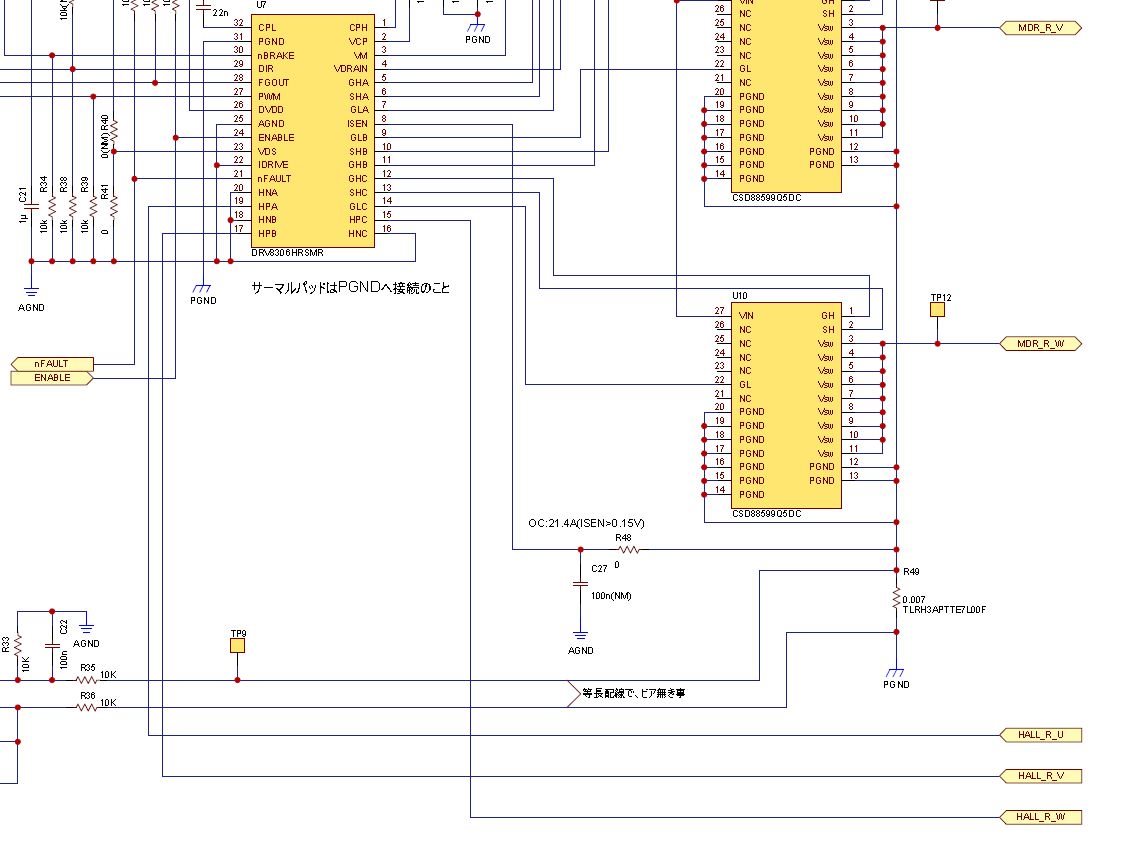

(Please find attached file)

I'd appreciate your help in advance.

Regards,

Sango

0 Adam Sidelsky over 7 years ago in reply to user5933712

TI__Guru 66550 points

Please check the datasheet, section 8.1.1.2 Open Drain Configuration

0 user5933712 over 7 years ago in reply to Adam Sidelsky

Prodigy 90 points

Adam,

Thanks for your information.

Regards,

Sango
