DRV2510-Q1: Failure every 2 seconds

Hi, Mariano,

Welcome to E2E and thank you for your interest in our products!

Do you have the information of the data in registers 0x00 and 0x02 before and after the dc motor fails? Could you also share the dc motor parameters or datasheet? Do you see some changes on VDD or EN pins when this problem arrives?

Thank you.

Best regards,
Luis Fernando Rodríguez S.

Dear Luis, (hablas español?)

Thanks for your quick answer. Below there are the registers values, before and after to the fail.

BEFORE:

0x00 = 0x04

0x01 = 0x00 0x40 (some time I got 0x40 here, but is a dont care bit)

0x02 = 0x80

0x03 = 0x78

AFTER:

0x00 = 0x04

0x01 = 0x00 (some times I got 0x40 here, but is a dont care bit)

0x02 = 0x20

0x03 = 0x78

The signal at INTZ it's almost a perfect 2 second period square wave.

I have the standby pin pulled down to gnd (I dont use it), and the EN is (controlled by the uC) pulled high.

There are the recommended boostrap capacitors as well the snubber.

The single one difference I found is that I'm not driving a solenoid but a dc motor.

Any idea? Gracias!

Buenos días, Mariano!

(Sí, también hablo español! )

Regarding the information that you provided, it seems that the device is marking a failure but it is not described in the registers.

In order to have a better approach to this issue, could you provide your circuit schematic and dc motor details? You may share this information to me via E2E in case you don't want to post it in a public forum.

Best regards,
Luis Fernando Rodríguez S.

Hi Luis,

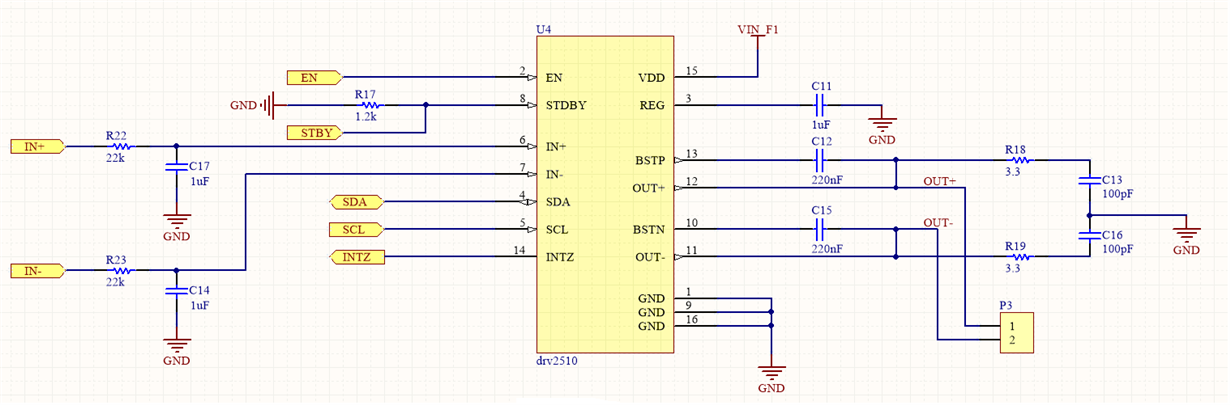

Here you are the schematics. There is no mystery there. The intz pin has not pull up, but I'm configuring the input pin of the mcu with it. VIN_F1 comes from a 12V source

I did a double check of components and signals... All seems to be ok, so I'm thinking in replace the chip, but I wold like any clue first.

Thanks!

Mariano

Hi, Mariano,

Thank you for your reply.

However, I cannot see the schematics in your last post, could you upload it again, please? I think you would need to attach it in the "Insert Code, Attach Files and more..." option.

Also, do you have details about the dc motor? Any datasheet or parameters that you could share too?

Thank you.

Best regards,
Luis Fernando Rodríguez S.

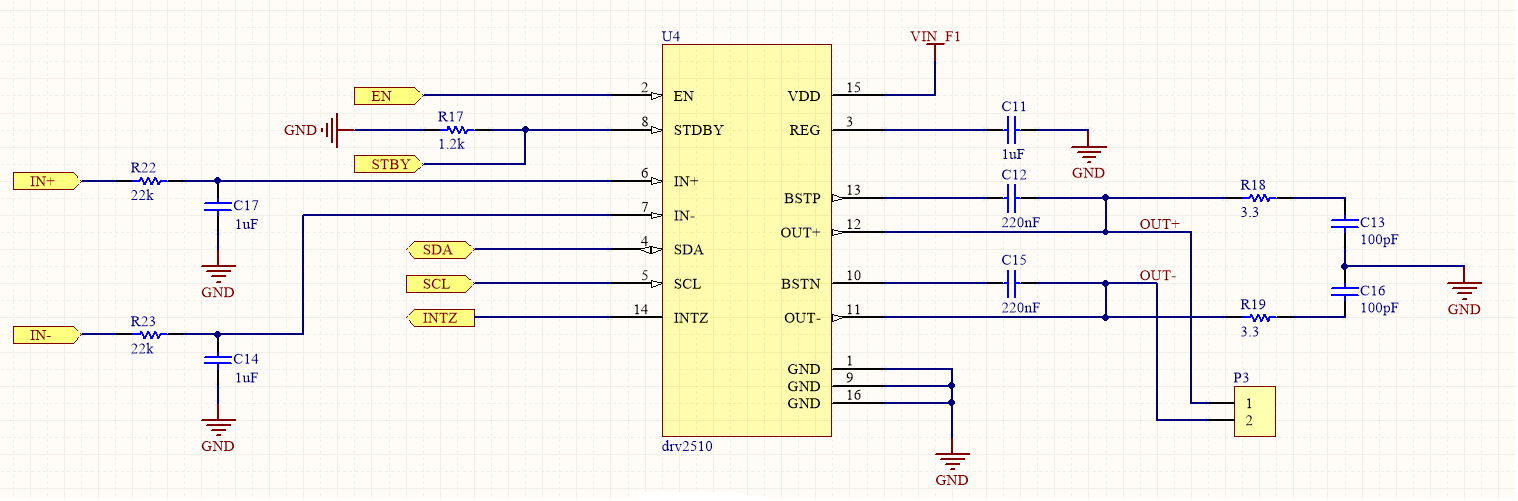

Sorry, Here you are again.

I have not datasheet from the dc motor, but it's a quite common one. Also, the fail occurs with any load.

Hi Luis,

I have measured the basics parameters of the dc motor. It has 0,5A at 12V and nominal speed.

Hi, Mariano,

Do you have any update on this? Please let me know if you have additional observations.

Best regards,
Luis Fernando Rodríguez S.

Hi, Mariano,

I will close this thread for now but feel free to ask for more information about this issue or share any observation that you have about it. We will be glad to help you.

Best regards,
Luis Fernando Rodríguez S.
