DRV10987: FG Pin Internal Configuration

hideyuki sakai

Mastermind 6250 points

Part Number: DRV10987

Dear, Sir.

My customer would like to put the digital transistor on PG output pin.

The current will be around 1mA.

Is it no problem on this kind of usage because the internal configuration will

be push-pull?

Best Regards,

H. Sakai

over 6 years ago

0 Sanmesh Udhayakumar over 6 years ago

TI__Expert 6065 points

when you say PG pin, do you mean FG pin?

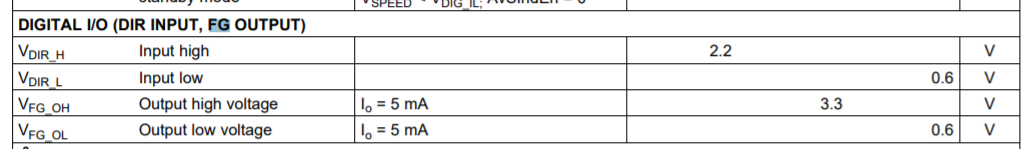

If so, I think 1mA should be fine because the datasheet electrical spec FG voltages are done at test condition Io = 5mA as shown below, but let me confirm. I need to confirm that the Io is the current coming out of the FG pin.

0 hideyuki sakai over 6 years ago in reply to Sanmesh Udhayakumar

Mastermind 6250 points

Dear, Sanmesh-san.

Sorry to ask you so many things.
They will start the design within short time, so many questions are coming.

I am hoping to get your help, one more time.

Best Regards,
H. Sakai

0 Sanmesh Udhayakumar over 6 years ago in reply to hideyuki sakai

TI__Expert 6065 points

I didnt manage to confirm today, so let me get back to you on this on tuesday when people come back from holiday, but I believe 1mA should be fine.

0 hideyuki sakai over 6 years ago in reply to Sanmesh Udhayakumar

Mastermind 6250 points

Dear, Sanmesh-san.

Thank you so much for your kindly reply.
It is no problem. I will be patient until Tuesday.

Best Regards,
H. Sakai

0 Sanmesh Udhayakumar over 6 years ago in reply to hideyuki sakai

TI__Expert 6065 points

1mA should be fine
