DRV8803: DRV8803 can be work on 4 lead motor?

user4786735

Part Number: DRV8803

DRV8803 can be work on 4 lead step motor?

If Yes. How to work?

0 Wang5577 over 5 years ago

Hello,

DRV8803 is Quad Solenoid/Relay Driver and hard to control the winding current and change the winding current direction.

0 user4786735 over 5 years ago in reply to Wang5577

Hi Wang

Could you please propose a stepper Moto driver which is pin to pin compatible with 8803? No matter it’s specific.

Shawn

0 Wang5577 over 5 years ago in reply to user4786735

Shawn,

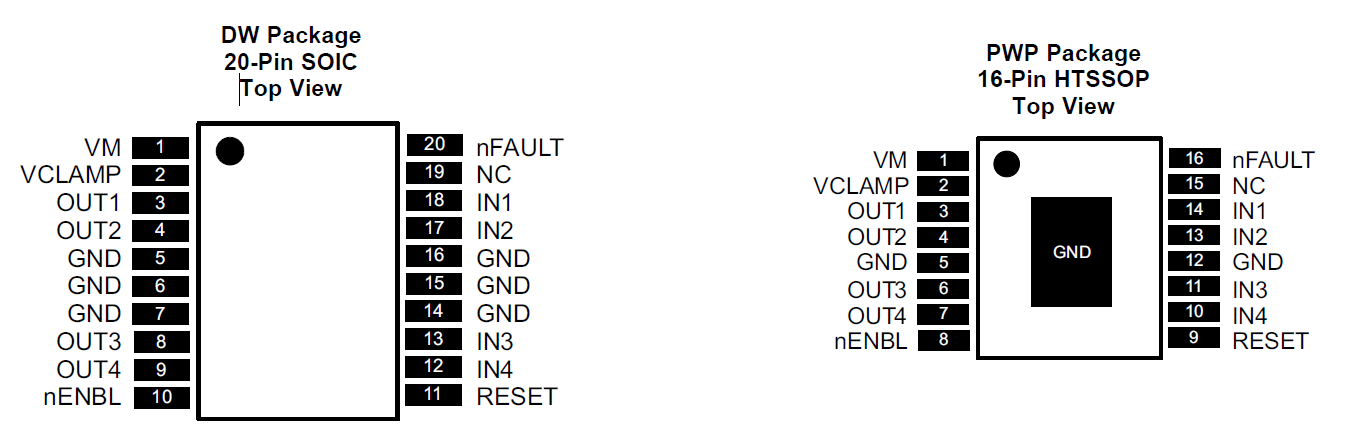

DRV8803 has 20 pin SOIC and 16 pin HTSSOP package. It doesn't need to drive the high side FET which requires a charge pump circuit and related pins.

So, I cannot find a pin to pin compatible bipolar stepper motor driver.

0 user4786735 over 5 years ago in reply to Wang5577

Here is our schematic and Digital output connection for you check. Is it correct for a PTO with 6 lead stepper motor application?

Shawn

0 Wang5577 over 5 years ago in reply to user4786735

Shawn,

How do you connect VCLAMP to VM. It should be connected to VM directly or with a diode.

0 user4786735 over 5 years ago in reply to Wang5577

Hi Li

I flow tidu705a_design_spec.pdf design

So VCLAMP should be connect to VM directly?

0 Wang5577 over 5 years ago in reply to user4786735

Shawn,

VCLAMP can be connected to VM directly. I didn't find the issue on your attached schematic.
