Hi there,

I want to base a BLDC generator design on the BOOSTXL-DRV8301 and F28069M launchpad combo. A lot of the TI information talks about motor mode. I am assuming that Generator mode is possible with motorware and there are not any hardware limitions on using the above for power generation?

Are there any changes or recommended changes to these reference designs when power generation is the target?

Thanks in advance for your support,

over 5 years ago

0 Adam Sidelsky over 5 years ago

TI__Guru 65250 points

Steven,

Thanks for posting on the MD forum!

Could you show us a schematic or basic block diagram for the setup you are proposing?

Regards,

-Adam

0 Steven Shenker over 5 years ago in reply to Adam Sidelsky

Intellectual 930 points

Hi Adam,

Thanks very much for getting back to me.

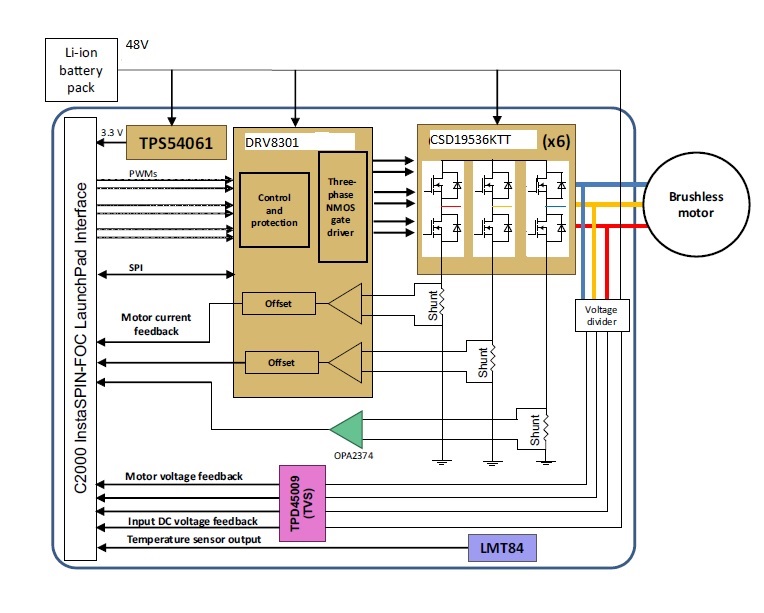

The block diagram is below, but the detailed circuitry is based on a TI motor controller reference design doc: TIDU708–February 2015. We have a 48V battery, but will have a BLDC generator running at RPM equivalent to 60V to convert power > 2 KW. Please let me know if you think there are any additional modifications necessary for changing from motor mode to predominantly generator mode.

Thanks in advance!

0 Adam Sidelsky over 5 years ago in reply to Steven Shenker

TI__Guru 65250 points

Steven,

I didn't see any image, could you repost it please?

Regards,

-Adam

0 Steven Shenker over 5 years ago in reply to Adam Sidelsky

Intellectual 930 points

0 Steven Shenker over 5 years ago in reply to Steven Shenker

Intellectual 930 points

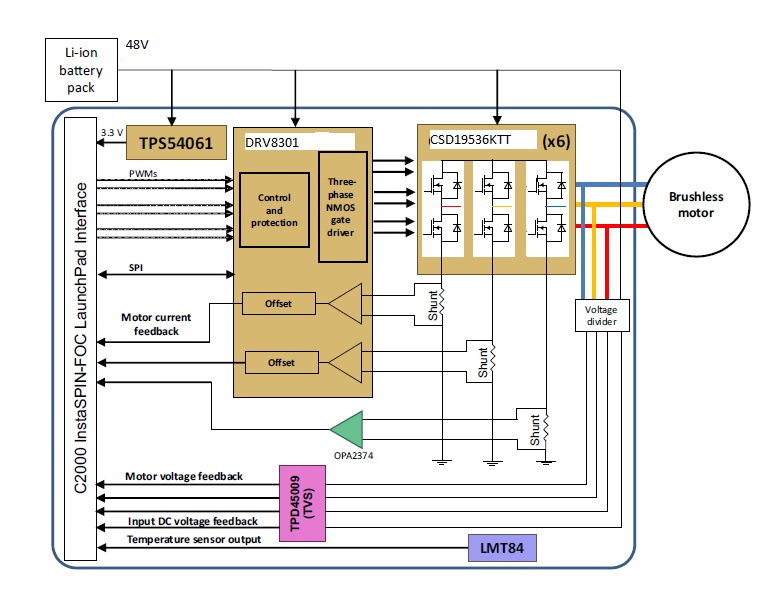

Strange, reposted it above. Let me know if you can see it.

0 Adam Sidelsky over 5 years ago in reply to Steven Shenker

TI__Guru 65250 points

Steven,

I see the image now but I don't follow the generator portion, can you illustrate that?

Regards,

-Adam

0 Steven Shenker over 5 years ago in reply to Adam Sidelsky

Intellectual 930 points

Hi Adam,

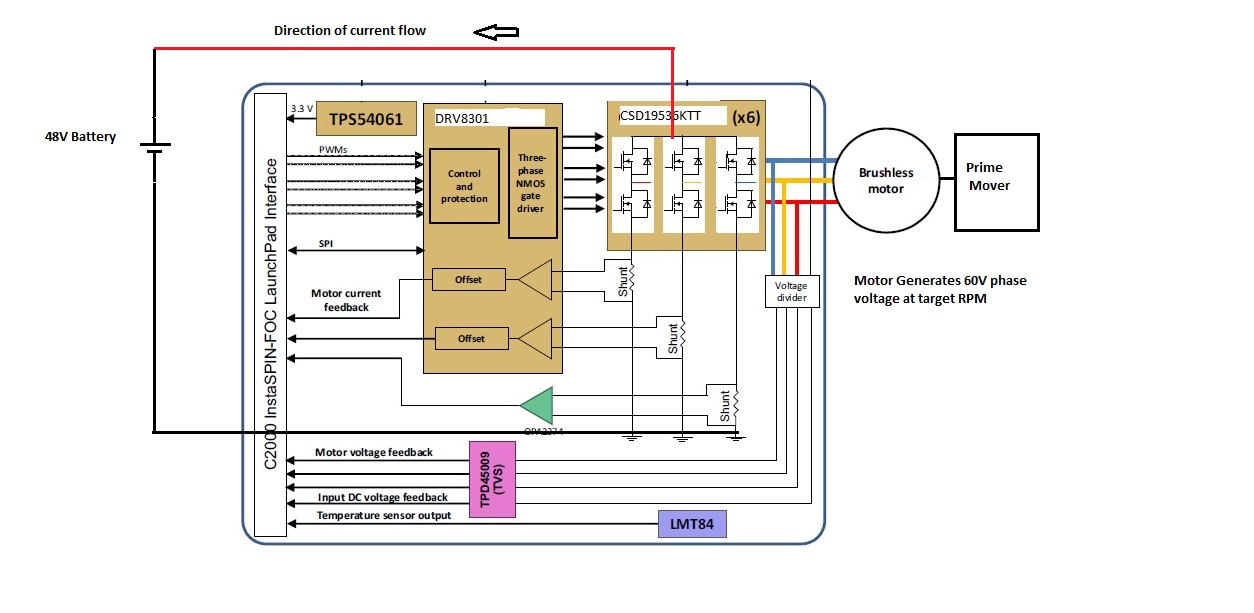

As far as I understand it from reading the motorware documentation, the motor will be turned into a generator when the torque request is negative. IE the motor is spinning forward with the controller generating negative torque and thus negative current. I would like to confirm this assumption, this is why the circuit diagram looks like a motor - but it should be able to switch to a generator via torque command. I have attached another diagram which might illustrate this concept better.

Again, would just like to confirm this assumption is correct, and that no specific additional circuitry is needed to run in generator mode and efficiently charge the 48V battery with the below hardware configuration.

Thanks,

0 Adam Sidelsky over 5 years ago in reply to Steven Shenker

TI__Guru 65250 points

Steven,

I am not very familiar with this feature of Motorware so I will forward your post to the C2000 team and hopefully they can help out.

Regards,

-Adam

0 Marlyn Rosales Castaneda20 over 5 years ago in reply to Adam Sidelsky

TI__Mastermind 24800 points

Steven,

Due to the US Holiday, please expect a reply early next week.

Best Regards,

Marlyn

0 Yanming Luo over 5 years ago in reply to Marlyn Rosales Castaneda20

TI__Guru** 115420 points

The hardware kit could be as a generator inverter, but, unfortunately, we don't have any reference design for the generator control till now. Of course, you may use some code modules in motorWare for the generator control, like Clark, Park, PI/PID, svgen...
