DRV2605L: out- short to GND problem

Will Wang47

Part Number: DRV2605L

Hi team,

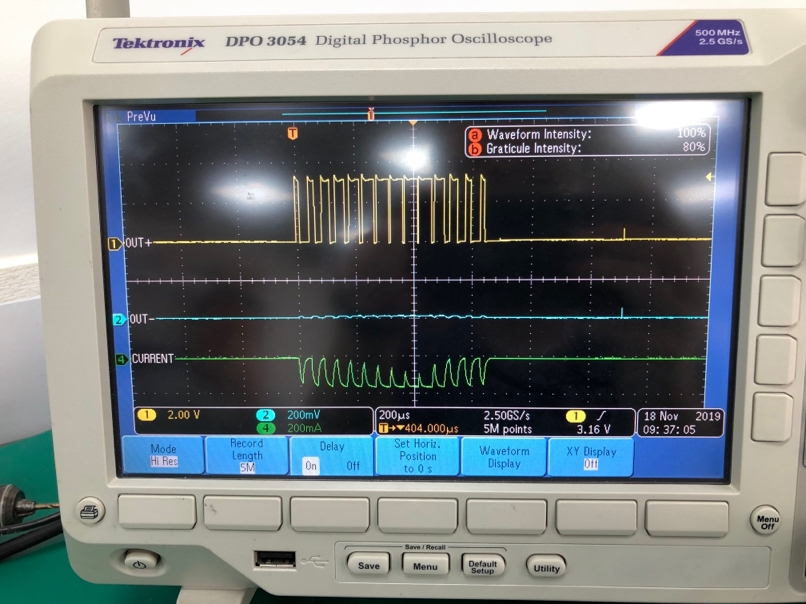

Customer is using DRV2605L, they get problem, the following is the test waveform. I measured the OUT+, OUT- resistance to GND, the OUT+ to GND is 0.8Mohm; OUT- to GND resistance is 1.56Ohm; The waveform shows there is OC protect in the during the operation. And customer could use software to communicate normally with the part. Could you give some comments to this issue? Does this short to GND possible cause by OC or EOS? Customer does not add ESD diode now, does it necessary to let them add ESD diode?

Any comments are highly appreciated!

Best Regards,

Will

over 6 years ago

0 Ivan Salazar over 6 years ago

TI__Guru** 111485 points

Hi Will,

We'll take a look at your questions and provide further information soon.

Best regards,
-Ivan Salazar
Applications Engineer - Low Power Audio & Actuators

0 Luis Fernando Rodriguez S. over 6 years ago in reply to Ivan Salazar

TI__Guru* 84915 points

Hi, Will,

Could you provide more details about this issue?

The OC and EOS protections appear when there's a high current demand on the outputs or the load is below 4 ohms. There's no need to add the ESD diode. But it is necessary to identify the root cause.

Could you provide details about the actuator load you are using? If you replace the unit, do you have the same results?

Best regards,
Luis Fernando Rodríguez S.

0 Will Wang47 over 6 years ago in reply to Luis Fernando Rodriguez S.

TI__Expert 7970 points

Hi Luis Fernando Rodríguez S.

Thanks for helping on this. I'll send you the actuator datasheet to you in email.

Best Regards,

Will

0 Luis Fernando Rodriguez S. over 6 years ago in reply to Will Wang47

TI__Guru* 84915 points

Will,

I'm closing this E2E thread for now since we are continuing our support via email.

Best regards,
Luis Fernando Rodríguez S.
