DRV8343-Q1: Pspice Model

Alexander Wirth

Part Number: DRV8343-Q1

Hello, TI,
I want to build a self-designed drivetrain for an RC model.
For this purpose, I want to use the motor driver DRV8343-Q1.
To select the DC link capacity, etc. I would like to build a PSpice model first.

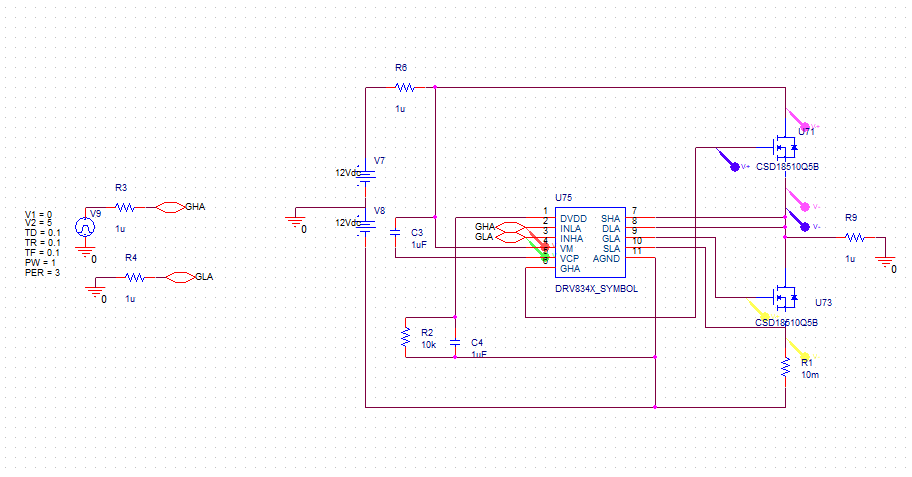

But I have a problem with the PSpice model, which I have built as shown below:

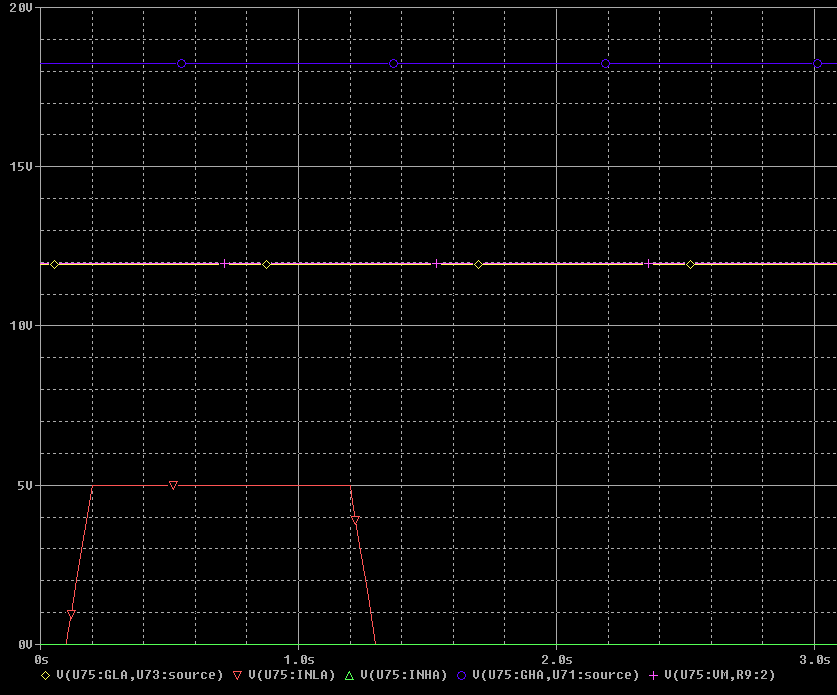

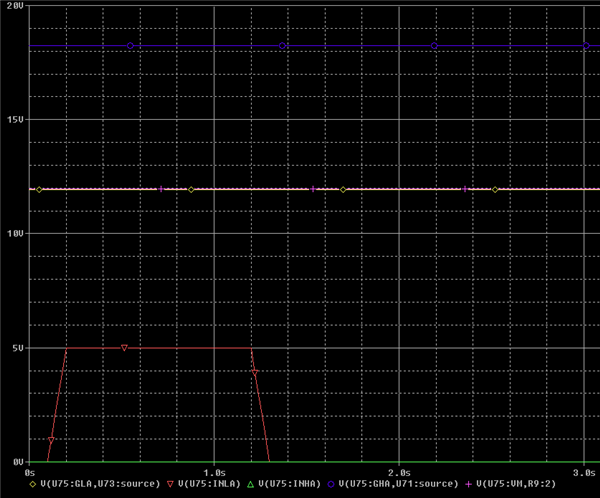

It seems, that the gate (GHA) does not activate the switch.

I would be very grateful for your help.

Regards,

Alex

over 5 years ago

0 Adam Sidelsky over 5 years ago

TI__Guru 65190 points

Alex,

I have contacted the owner of this model and we will get back to you this week.

Regards,

-Adam

0 Garrett Walker over 5 years ago

TI__Intellectual 2595 points

Hi Alexander,

It looks like you've connected your main system GND between two 12-volt supplies. This puts the AGND connection of the DRV8343 at effectively -12V, so the thresholds for the inputs probably aren't registering correctly. Could you try moving the GND connection to the net that AGND is attached to, and see if that solves the issue?

Thanks,
Garrett

0 Alexander Wirth over 5 years ago in reply to Garrett Walker

Prodigy 160 points

Hi Garret,
if the AGND is connected to the GND, the simulation does not converge.

Regards,

Alex

0 Garrett Walker over 5 years ago in reply to Alexander Wirth

TI__Intellectual 2595 points

Hi Alex,

Could you try supplying 3.3V to DVDD? On the actual device this pin is internally regulated from VM, but looking at the reference PSPICE design we provide with the model, I'm seeing a 3.3V supply hooked up to this pin instead of the 1uF capacitor.

Thanks,
Garrett

0 Alexander Wirth over 5 years ago in reply to Garrett Walker

Prodigy 160 points

Hi Garrett,
unfortunately, the simulation results are the same, as the results with the 1µF capacitor.

Regards,
Alex

0 Garrett Walker over 5 years ago in reply to Alexander Wirth

TI__Intellectual 2595 points

Hi Alex,

One more experiment to try: could you increase R9 to 1kohm? I'm wondering if the very low resistance is dropping out the VM supply when the MOSFET turns on, and if this sudden voltage swing could be causing the simulation to not converge.

Thanks,

Garrett

0 Alexander Wirth over 5 years ago in reply to Garrett Walker

Prodigy 160 points

Hi Garrett,
unfortunately, this has no effect on the simulation results.

Regards,
Alex

0 Adam Sidelsky over 5 years ago in reply to Alexander Wirth

TI__Guru 65190 points

Alex,

Could you provide us your latest files and we will take a look?

Regards,

-Adam

0 Alexander Wirth over 5 years ago in reply to Adam Sidelsky

Prodigy 160 points

Hi Adam,
the latest file is in the appendix.

Best Regards,

Alexander Wirth

DRV8343-Q1_test.zip

0 Garrett Walker over 5 years ago in reply to Alexander Wirth

TI__Intellectual 2595 points

Hi Alexander,

I'm not seeing anything obviously wrong in your testing setup, but I'm still seeing the errors on my side too. Are you able to simulate the example project that's included with the PSPICE model download?

Thanks,
Garrett

0 Alexander Wirth over 5 years ago in reply to Garrett Walker

Prodigy 160 points

Hi Garrett,
I did not recognize the example project until you wrote the message, so I spend some time on the example project.
I am able to simulate the example project easily,
but if I use some other sources for the pins INHA and INLA than I get the problem like in my own project (for example 0V and 3.3V DC-Voltage).
I think this fact could help.

Best Regards
Alexander Wirth
