CCS/DRV8350H-EVM: I referenced the DRV8350_evm and have a new design, but can not drive the motor properly.

Scalery

Part Number: DRV8350H-EVM
Other Parts Discussed in Thread: MSP430F5529, DRV8350, UNIFLASH

Tool/software: Code Composer Studio

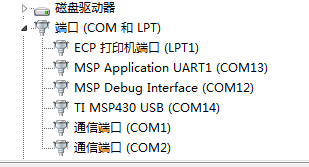

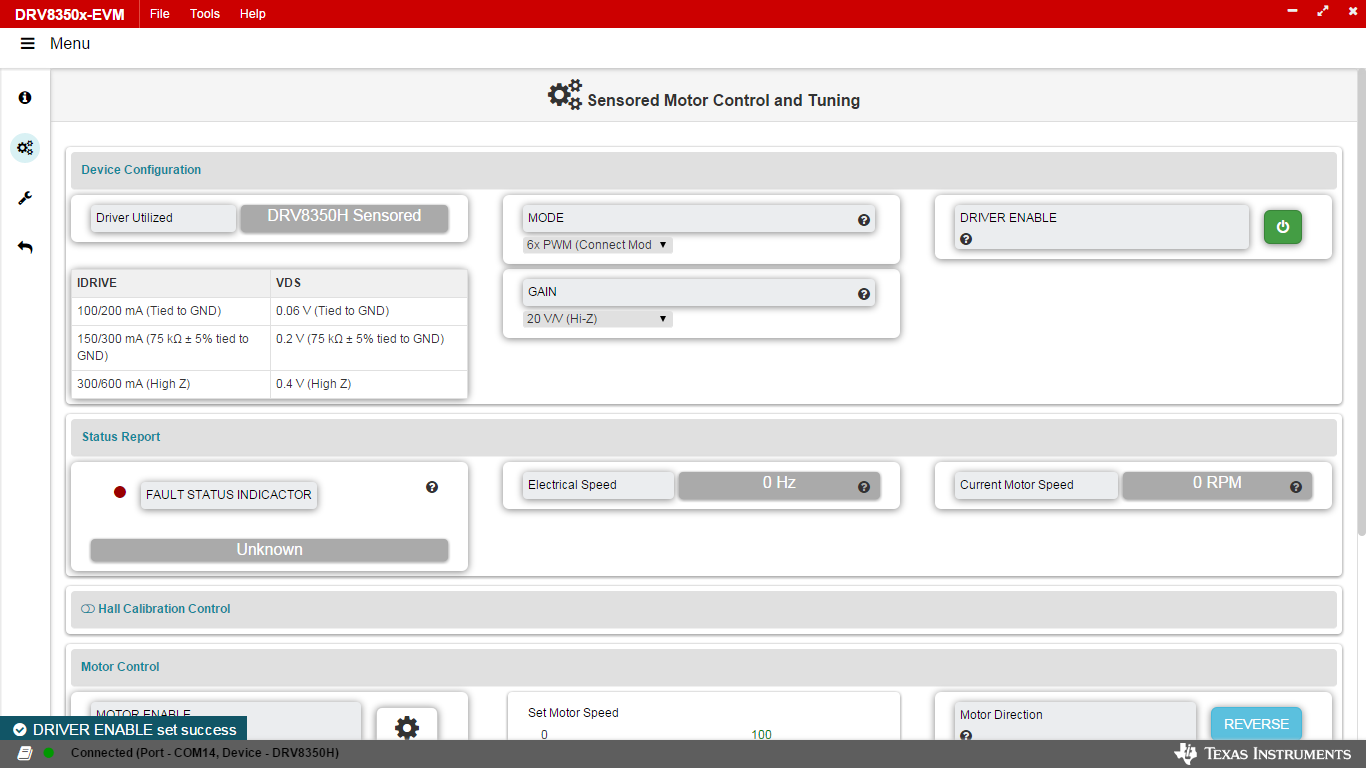

After so much attempts now successfully installed all driver and COM Ports just like below. I have downloaded the .OUT file in the folder of E:\ccs\DRV8350x_EVM_BLDC_FW_1.0.0\DRV835X_MSP430F5529_Trapezoidal_Sensored_BLDC\Debug, But as I tried to drive the motor use the GUI OF DRV8350x EVM, when I enabled the drv8350H device,

it indicate unknow error and NFault led light is on. what's wrong?

Followed is my design schematic.

3443.New_drv8350_evm.rar

I have also tried to use the Uniflash tool to download the pre built .out file which is available in the the package of DRV8350x_EVM_BLDC_FW_1.0.0. But it still can not spin the motor.

How can I further dubug my device?

over 5 years ago

0 Adam Sidelsky over 5 years ago

TI__Guru 65170 points

Scalery,

The GUI and OUT files are designed to work with the EVM and unfortunately it is difficult to support development using our toolset and a custom board.

There are three threads about this exact same question so I am closing this thread.

Regards,

-Adam

0 Scalery over 5 years ago in reply to Adam Sidelsky

Intellectual 540 points

Hello Adam,

Thanks for your reply, But I used the TI reference design which is very supported in Ti.

About NFault error, How can I debug that, I just didn't use the SPI interface.

0 Adam Sidelsky over 5 years ago in reply to Scalery

TI__Guru 65170 points

Please follow my debug steps in the other thread.

0 Scalery over 5 years ago in reply to Adam Sidelsky

Intellectual 540 points

Thank you so much!
