DRV8323: SPI always responding 0x FFFFon BOOSTXL-DRV8323RS with MSP430F5529 using the sensor sample code

NEIL SINGER

Part Number: DRV8323

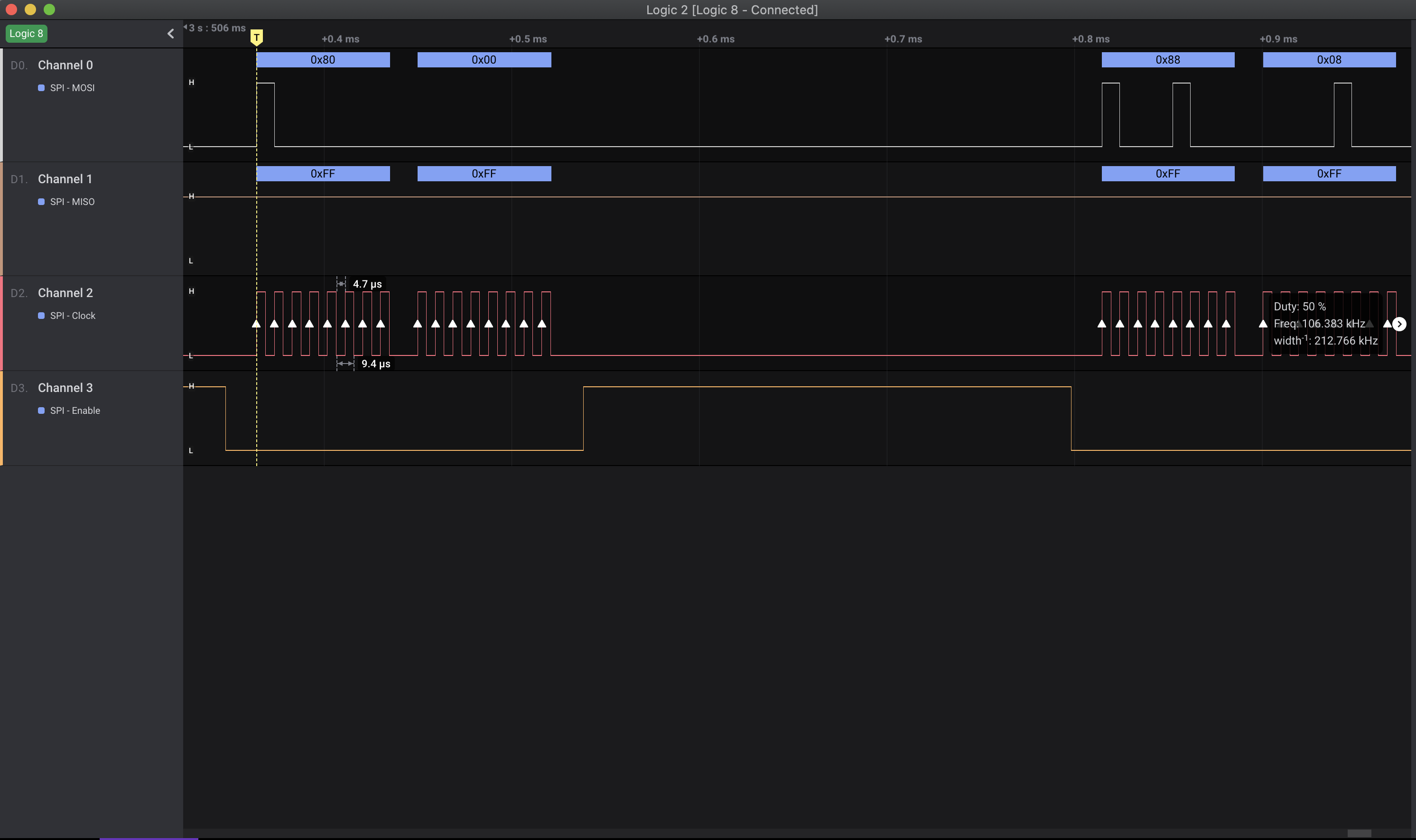

I am using a BOOSTXL-DRV8323RS with MSP430F5529LP. When using the sensored sample code (DRV832XXEVM Sensored) the SPI commands do not work. The SDO line is always high reporting 0xFFFF for all register values. Below is a picture from the logic analyzer. Any help is greatly appreciated.

over 5 years ago

0 Adam Sidelsky over 5 years ago

TI__Guru 65320 points

Neil,

Thanks for posting on the MD forum!

Have any changes been made to the hardware or software?

The SDO line on the board is pulled up with an external pull up resistor since the SDO pin is open drain. Can you confirm that the ENABLE pin is high and the VM/VDRAIN are powered? What is the status of the nFAULT pin?

Regards,

-Adam

0 NEIL SINGER over 5 years ago in reply to Adam Sidelsky

Expert 1180 points

Hello Adam thank you for the response. The ENABLE pin was low... I changed it so the enable pin was driven high and it works.

I made no changes to the software or hardware, is there anyway to tell the software team at TI about the bug? The ENABLE pin is driven low during SPI setup so it does not work.

0 Adam Sidelsky over 5 years ago in reply to NEIL SINGER

TI__Guru 65320 points

Neil,

What time period are you referencing "SPI setup"?

How did you enable the device?

Regards,

-Adam
