DRV8873SEVM: Missing hardware files and schematic for the SPI version of eval. board

Phil Chu

Part Number: DRV8873SEVM

The hardware zip file slvc753.zip does not contain the schematic and hardware files for the DRV8873SEVM SPI version of the eval. board. Please show me where I can get these files. Thanks.

over 5 years ago

0 Pablo Armet over 5 years ago

TI__Mastermind 37683 points

Hi Phil,

Thank you for posting to the motor drives forum.

If you look at the the MD021A_Hardware.SchDoc file, the variant table shows the PCB variant 001 as the DRV8873SEVM. You have to select variant 001 to view the hardware files for the DRV8873SEVM.

I hope this answers your question

0 Phil Chu over 5 years ago in reply to Pablo Armet

Intellectual 455 points

Pablo,

In the slvc753.zip, I see only MD021A(002)_Sch.PDF, and BOM, Assy for variant -002.

I need the PDF and xls files for schematic, BOM and Assy for variant -001. Where can I find them exactly.

BTW, which design software did you use on this board?

Thanks

Phil

0 Pablo Armet over 5 years ago in reply to Phil Chu

TI__Mastermind 37683 points

Phil,

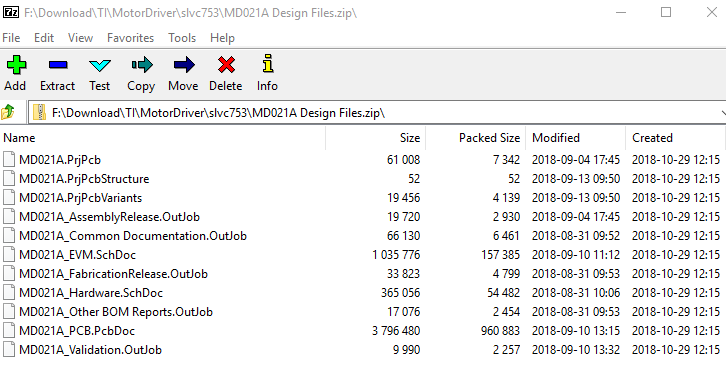

When you open the zip folder, do you see another zip folder titled "MD021A Design Files.zip"?

0 Pablo Armet over 5 years ago in reply to Pablo Armet

TI__Mastermind 37683 points

Phil,

For your convenience, I have attached the schematic, BOM, and Assembly PDFs for the DRV8873SEVM.

MD021A(001)_Sch.PDF MD021A(001)_BOM.pdf MD021A(001)_Assy.PDF

0 Phil Chu over 5 years ago in reply to Pablo Armet

Intellectual 455 points

Pablo,

I do see "MD021A Design Files.zip", but it does not contain any PDF file at all!

Why is that? Thanks

0 Pablo Armet over 5 years ago in reply to Phil Chu

TI__Mastermind 37683 points

Phil,

The PDF files for the 001 variants are not included in the hardware files. You have to open the design files with Altium or another PCB design software to export the schematic as PDF.

0 Phil Chu over 5 years ago in reply to Pablo Armet

Intellectual 455 points

Pablo,

I see. Need one more PDF, please send MD021A_PCBlayers.PDF for variant -001.

Thanks

Phil

0 Pablo Armet over 5 years ago in reply to Phil Chu

TI__Mastermind 37683 points

Phil,

The MD021A_PCBlayers.PDF is the same file for both variant 001 and 002.
