DRV8711: Soldered thermal pad DRV8711

Aleksei Sporyagin

Part Number: DRV8711

Can soldered thermal pad DRV8711 with help plated hole with opposite side plate? If yes,
what diameter hole and distance between hole.

0 Wang5577 over 4 years ago

Hello, Aleksei,

What do you mean "help plated hole with opposite side plate"?

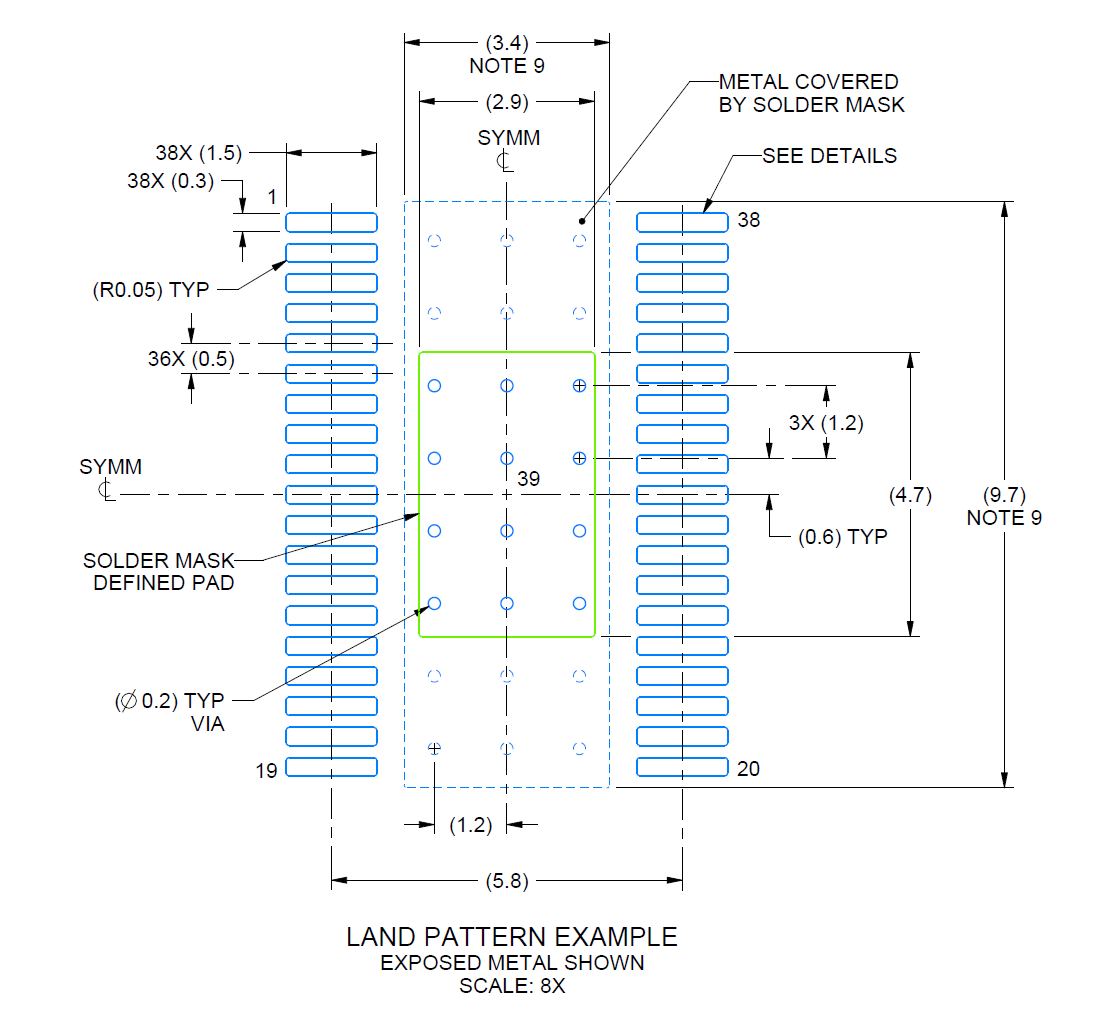

The datasheet gives the thermal via size: 0.2mm; distance 1.2mm between vias

0 Aleksei Sporyagin over 4 years ago in reply to Wang5577

Help plated hole with opposite side plate mean thermal pad soldered through via hole. Soldering realize iron. Can used this technologies?

If yes, what diameter hole and distance between hole.

0 Ryan Kehr over 4 years ago in reply to Aleksei Sporyagin

Hello!

This is not recommended. A standard reflow process using solder paste ensures a good connection between the exposed pad and the PCB.

For more information, please see the following app note:
