LM76003: CHECK SCHEMATIC

Cooper Zhang1
Expert 2190 points
Part Number: LM76003

DEAR：

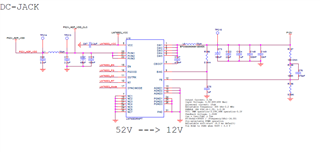

please kindly help me check lm76003 schematic as below, any question , please give me comments ， many thanks~

  • 0
    TI__Mastermind 28020 points

    Hi Cooper,

    The schematic looks pretty good. A few things to point out:

    Make sure EN is tied high or connected to on/off control. Do not leave floating.

    SS/TRK: this pin can be left floating for 6.3ms timing or place external capacitor.

    Make sure the RT pin has a resistor to ground to set the frequency.

    Connect the SYNC/MODE pin to ground for PFM and tie to high signal for FPWM.

    Regards, Jason
