UCC25600: UCC25600 SS pin external OVP use inquiry.

Grady Lee

Genius 4215 points

Part Number: UCC25600

Hi, TI expert.

The customer is trying to configure the output terminal OVP using the SS pin of UCC25600.

(Output voltage: 50Vdc , OVP set level: 76Vdc)

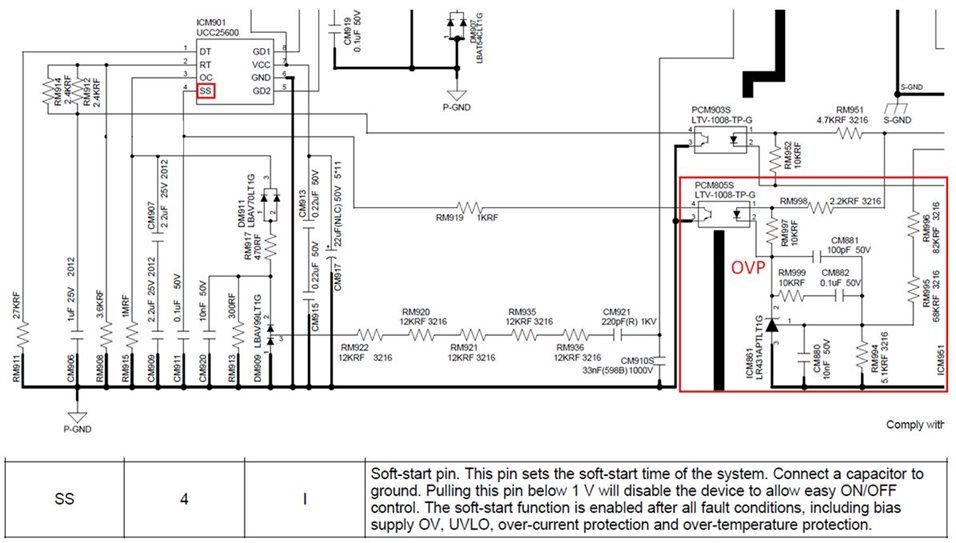

Q1) When the SS pin is configured as OVP (using photo-coupler) as in the schematic below, is there any problem?

Q2) Also, please review whether there is any problem with the time constant of the OVP stage.

Please confirm. Thank you.

over 4 years ago

0 Yunsheng Qu over 4 years ago

TI__Genius 9790 points

Hi, Grady

SS pin of UCC25600 can be used to disable the IC, for example the way you are using for OVP. so there is no concern to realize OVP in you way.

Yunsheng

0 Grady Lee over 4 years ago in reply to Yunsheng Qu

Genius 4215 points

Hi, Yunsheng

Thanks for the quick reply.

As you said, I understood it by saying that there is nothing wrong with configuring the OVP like the circuit.

Is there any particular problem with the time constant of the OVP circuit in the red box? (Is there anything to edit?)

+1 Yunsheng Qu over 4 years ago in reply to Grady Lee

TI__Genius 9790 points

Grady,

the circuit in red box has no concern. I have concern on the RM919, it should be replaced by a diode. cathode of this diode connect to opto-coupler. since the voltage drop on RM919 my not pull low SS pin effectively.

Yunsheng
