TPS745-Q1: Is 8 pin package wettable frank?

Yoshiki Ochi

Part Number: TPS745-Q1

Hi team,

Is TPS74533PQWDRBRQ1 wettable frank?
Its datasheet top page says 8pinpackage is WSON and it is wettable frank, however, its "PACKAGE MATERIALS INFORMATION" page says 8pin device is SON package.
I guess all package of TPS745-Q1 including 6pin and 8pin are wettable frank, is it correct?

Regards,
Ochi

over 4 years ago

0 Wilson Fwu over 4 years ago

TI__Expert 4320 points

Hi Ochi-san,

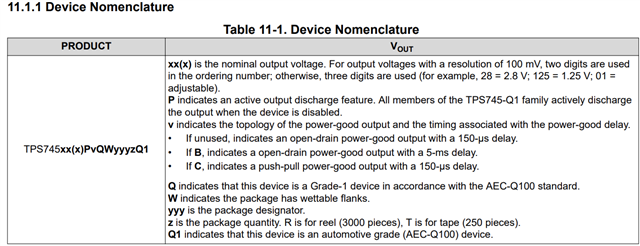

Yes both are the wettable flank option. This is depicted in the nomenclature table and is included in the orderable with a W

regards,

Wilson

0 Yoshiki Ochi over 4 years ago in reply to Wilson Fwu

TI__Genius 9365 points

Hi Wilson,

Thank you so much.

Just confirmation, is there typo on "PACKAGE MATERIALS INFORMATION" which says DRB is equal to SON instead of WSON.

Regards,
Ochi

0 Wilson Fwu over 4 years ago in reply to Yoshiki Ochi

TI__Expert 4320 points

Hi Ochi-san,

Yes I believe it should actually be VSON per the TI packaging website - https://www.ti.com/packaging/docs/searchtipackages.tsp?packageName=SON as SON just refers to Small Outline No-Lead.

This is an automated table and so I believe there may have been some syncing issues. This has been noted and will be looked into.

regards,

Wilson
