WEBENCH-POWER-DESIGNER: LM5576 cannot show its bode plot under 28Vout condition

Ella KIM

Part Number: WEBENCH-POWER-DESIGNER
Other Parts Discussed in Thread: LM5576

Hi Webench Team,

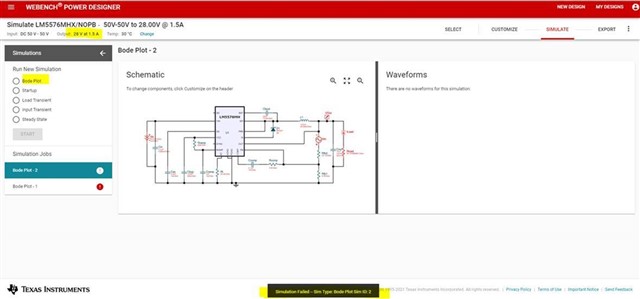

I'm running the simulation for LM5576. The operating condition is 50Vin, 28Vout, 1.5Aout. When I change some component values and try to check the bode plot, it doesn't work with 'Simulation Failed' error. Could you look into this?

over 4 years ago

0 Bhushan Waghmare over 4 years ago

TI__Expert 3320 points

Hi Ella

You are correct. I verified for default input condition its working fine but for specific case mentioned above its failing. We are looking into the root cause for this. We would be able to get back with more details by next week.

Best Regards

Bhushan

0 Ella KIM over 4 years ago in reply to Bhushan Waghmare

TI__Expert 4212 points

Hi Bhushan,

Could you kindly give any update?

0 Umayal Ramanathan over 4 years ago in reply to Ella KIM

TI__Expert 5760 points

Hi Ella ,

We have fixed this issue on internal servers. The fix will be available on ti.com tentatively by 7th July(After next WEBENCH release).We shall keep you updated on the same.

Thanks and Regards,

Umayal

0 Ella KIM over 4 years ago in reply to Umayal Ramanathan

TI__Expert 4212 points

Umayal,

Thank you for your update. But I still run into the same problem. Maybe I misunderstand your comment. Is the fix available BY 7th July or FROM 7th July?

0 Bhushan Waghmare over 4 years ago in reply to Ella KIM

TI__Expert 3320 points

Hi Ella,

We are expecting next Webench release to be tentatively on 7th of July. So the fix should be available (on ti.com) on or after 7th of July. Hope this clears the confusion. Umayal will update you on this thread once the changes are available to test on ti.com.

Best Regards

Bhushan

0 Ella KIM over 4 years ago in reply to Bhushan Waghmare

TI__Expert 4212 points

Bhushan,

The message is so clear. Thank you for clarification. Will wait for Umayal's update.

+1 Umayal Ramanathan over 4 years ago in reply to Ella KIM

TI__Expert 5760 points

Hi Ella,

The fix is now available on ti.com. Kindly revert back to us on any further queries.

Thanks and Regards,

Umayal

0 Ella KIM over 4 years ago in reply to Umayal Ramanathan

TI__Expert 4212 points

Thanks so much Umayal for your follow-up.
