LM5069: Schematic review

Hi Denny,

Thanks. Nice to hear that.

Please share the filled up LM5069 design calculator to review the design. The design calculator is available under https://www.ti.com/product/LM5069#design-development##design-tools-simulation

Best Regards, Rakesh

Hi Rakesh

Thanks your recommend.

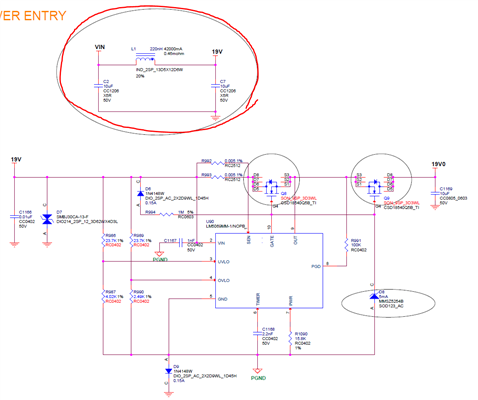

The customer would like to know π-type filtering should be placed on the right or left end of the TVS (D7)?

Many thanks

Denny

Hi Rakesh

Thanks your recommend.

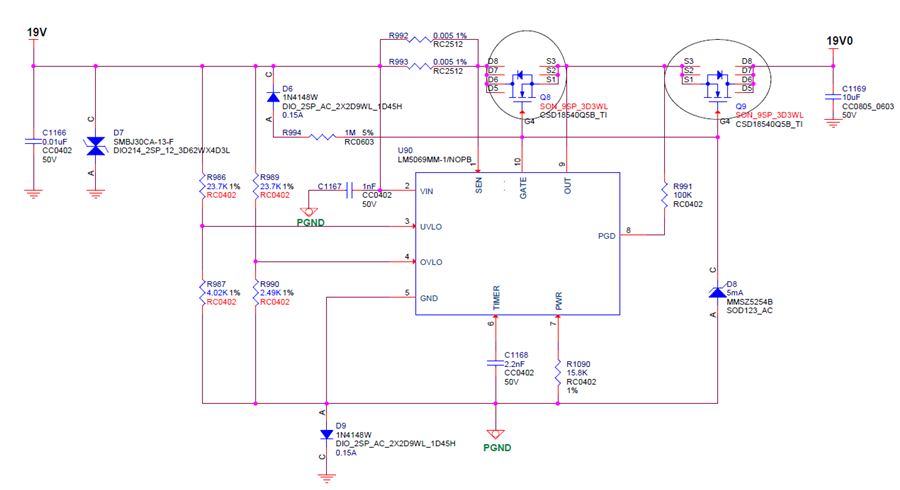

The customer would like to select solution of Q8 and Q9 and D8, could you help to recommend?

Many thanks

Denny

Hi Denny,

Please consider CSD18540Q5B for Q8 and Q9

BZT52C33-7-F for D8

Please share filled-up design sheet for review. The design calculator is available at https://www.ti.com/product/LM5069#design-development##design-tools-simulation

Best Regards, Rakesh

Hi Rakesh

Thanks your recommend.

I share the design sheet as attached, could you help to review.

2806.LM5069_Design_Calculator_REV_C.xlsx

Many thanks

Denny

Hi Rakesh

Thanks your recommend. The customer would like to know, For this spec how to select the voltage of D8(zener diode).

Could you help to recommend? ex: how to calculate?

Many thanks

Denny

Hi Rakesh

 snva430b (4).pdf

From application report of SNVA430B.

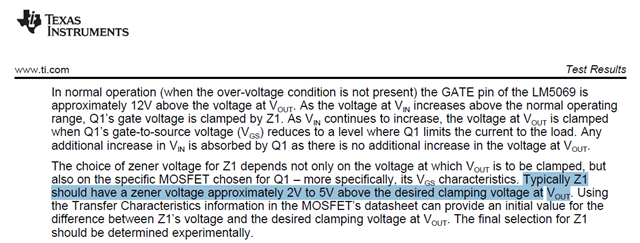

For Z1 selecting, From page 3. Typically Z1 should have a zener voltage approximately 2V to 5V above the desired clamping voltage at VOUT.

For customer' spec Vo=19V, whether select 24V(19V+5V) is ok?

Many thanks

Denny

Hi Rakesh
Thanks your recommend.

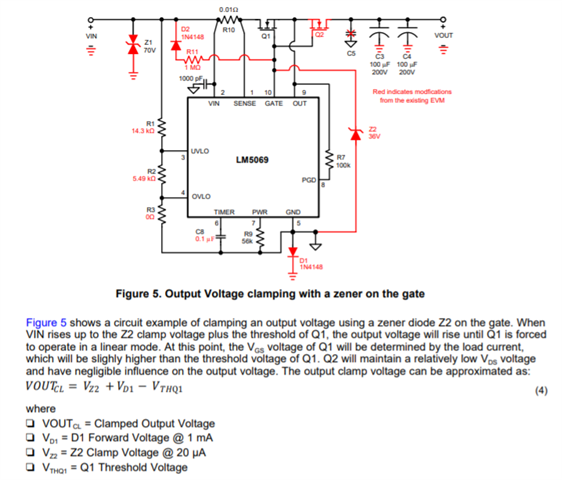

For customer's spec Vin=19V, what value of VGATE will be after charge bump?
Whether the voltage of GATE wil larger than voltage of zener, then cause by zener turn on?
Many thanks
Denny

Yes Denny.

Vgate = Vin + 12V = 31V. so Zener min breakdown voltage should be > 31V

What is your target clamping voltage of the output?

Best Regards, Rakesh
