TPS546C23: Strange WeBench steady state simulation results

Kazuhiko Hirano

Genius 15048 points

Part Number: TPS546C23

Hello,
I simulated TPS546C23 steady state using WeBench for Vin=12V, Vout=0.7V, Iout(max)=34A, Fsw=200KHz and Cout=Ceramic.
However, the results look strange as follows, Vout is almost 0V.

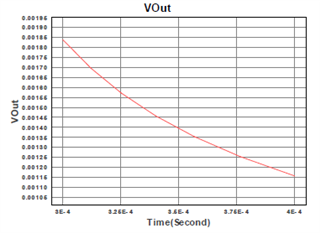

WBDesign817_Steady State-1.pdf
What is wrong?

Best regards,

K.Hiranoo

over 4 years ago

0 Praveen Badiger over 4 years ago

TI__Expert 8365 points

Hi Hiranoo,

We are able to reproduce this issue. We will look into this. We will keep you updated on the same.

Thanks & Regards,

Praveen

+1 Praveen Badiger over 4 years ago

TI__Expert 8365 points

Hi Hiranoo,

we have fixed this issue. The changes will reflect on ti.com by the 4th week of July. We will let you know once the fix is available on ti.com.

Thanks & Regards,
Praveen

0 Kazuhiko Hirano over 4 years ago in reply to Praveen Badiger

TI__Genius 15048 points

Praveen,

Thank you for fixing the issue.
I look forward to the fix is available on ti.com

Best regards,

K.Hirano

0 Praveen Badiger over 4 years ago in reply to Kazuhiko Hirano

TI__Expert 8365 points

Hi Hiranoo,

The fix is available on ti.com

Thanks & Regards,
Praveen

0 Kazuhiko Hirano over 4 years ago in reply to Praveen Badiger

TI__Genius 15048 points

Praveen,

Thanks a lot for your support!

Best regards,

K.Hirano
