TPS61022: Output Short Test

Hirotsugu Kobayashi

Part Number: TPS61022

Hi team.

The IC burned out during the output short test.

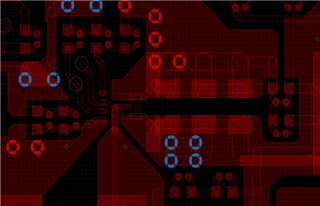

The layout is as recommended in the datasheet, what can I improve to prevent it from burning?

Best Regards,

over 4 years ago

0 Wenhao Wu over 4 years ago

TI__Genius 9046 points

Hi Hirotsugu,

The layout looks ok from 1st glimpse. Would you mind using diode mode and test if it is HSFET or LSFET failure? Please also share the schematic for this design. Thank you!

-Wenhao

0 Hirotsugu Kobayashi over 4 years ago in reply to Wenhao Wu

Mastermind 9540 points

Hi Wenhao,

MODE is Low.
After the failure, SW and GND are short-circuited.
Since the schematic is confidential, we will send the messages individually.
