BQ28Z610EVM-532: Dashboard can't work

Lin BoChen

Part Number: BQ28Z610EVM-532
Other Parts Discussed in Thread: BQSTUDIO

Hello

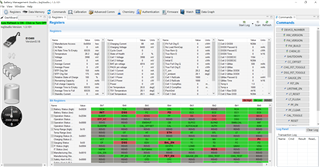

This is Reus From TI customer of Taiwan, I have a question of the BQ28Z610EVM-532. When the demo board is connection with PC, the interface has show the demo board message. but in the few second, the interface is show that is disconnect with demo board. But put the S1 button is connect again and a few second is disconnect. what is demo board happened?

over 4 years ago

0 Shirish over 4 years ago

TI__Guru 57697 points

Hello Lin,

The gauge goes to sleep mode (FET turned off) in approximately 20 seconds if there is no charge or discharge current detected for this time. Connect a charger to keep the gauge awake.

0 Lin BoChen over 4 years ago in reply to Shirish

Prodigy 10 points

Hello Shirish

Thanks for your reply. But the gauge goes to sleep mode in 4 to 5 sec. Can the gauge define sec of sleep mode?

0 Shirish over 4 years ago in reply to Lin BoChen

TI__Guru 57697 points

Hello Lin,

Sleep is detailed in TRM https://www.ti.com/lit/ug/sluua65d/sluua65d.pdf section 5.3

Data memory configuration is in section 13.5.3

Bus timeout is in class Power Sleep 0x4613 Bus Timeout U1 0 255 5 s

0 Lin BoChen over 4 years ago in reply to Shirish

Prodigy 10 points

Hello Shirish

I have follow to your provide information to set, but it also to disconnect with demo board after 5 sec again. The other question is when I was disconnected cell but the bqstudio is can't search the demo board.

0 Shirish over 4 years ago in reply to Lin BoChen

TI__Guru 57697 points

Hello Lin,

Can you send your settings?

The cell provides power for gauge operation, so it cannot be disconnected when using with bqStudio.

0 Lin BoChen over 4 years ago in reply to Shirish

Prodigy 10 points

Hello Shirish

Here is my data memory. Thanks for your help to confirm.

bq28Z610_0805.gg.gg.gg.csv

0 Shirish over 4 years ago in reply to Lin BoChen

TI__Guru 57697 points

Hello Lin,

Thanks. The sleep timeout is set at 5s and sleep current is 10mA. You can change the timeout or have a current flow of >10mA to keep the gauge awake.

Power

Sleep

Sleep Current

Power

Sleep

Bus Timeout

0 Lin BoChen over 4 years ago in reply to Shirish

Prodigy 10 points

Hello Shirish

Thanks for you marking issue. I have modified the sleep value, but that is not work, still disconnect after 5 sec.

0 Shirish over 4 years ago in reply to Lin BoChen

TI__Guru 57697 points

Hello Lin,

Please refer section 2.3 of https://www.ti.com/lit/ug/sluube3/sluube3.pdf for EVM connections and verify that it matches.

0 Shirish over 4 years ago in reply to Shirish

TI__Guru 57697 points

Section 5.3 SLEEP Mode of the TRM describes the conditions for sleep mode. Perhaps you have IN_SYS_SLEEP set. Please review all the settings for Sleep mode.

0 Lin BoChen over 4 years ago in reply to Shirish

Prodigy 10 points

Hello Shirish

Thanks for your suggestion and that is working.
