UCC20225A-Q1: Class-D simulation convergence problem with UCC20225

Part Number: UCC20225A-Q1
Other Parts Discussed in Thread: TINA-TI

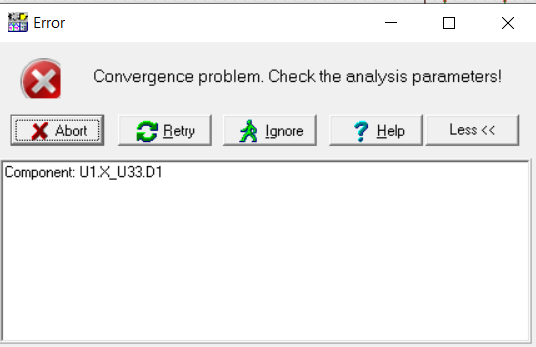

I am simulating a Class-D amplifier circuit. When i simulate it part by part , i get the proper simulation results but when i integrate the complete chain, i am getting convergence issues.

I have attached the tina-ti file.

Please check and let me know if i am missing something or if something is incorrect.

Class-D.TSC

over 4 years ago

+1 Daniel Norwood over 4 years ago

TI__Expert 5921 points

Hello Pavan,

Thank you for reaching out. TINA-TI is the TI version of the TINA software, a software maintained and supported by DesignSoft. Because of this, questions about TINA are best answered by the DesignSoft team which you can contact here: https://www.tina.com/technical-support/

Submitting your question to this team will be the best way to get an answer.

Please let us know if this is helpful for you be clicking the green button.

Regards,

Daniel

+1 PP over 4 years ago in reply to Daniel Norwood

Prodigy 20 points

Thanks for the reply. Got it touch with DesignSoft Team and they have provided a solution.

Thanks Again!

0 Shubiao Wang over 4 years ago in reply to PP

TI__Intellectual 1490 points

Hi，

I met the same issue with Tina, would you kindly share the solution here？

BRs，

Shubiao

0 Daniel Norwood over 4 years ago in reply to Shubiao Wang

TI__Expert 5921 points

Hi Shubiao,

While I am not sure of how exactly problem was resolved, I do know that a variety of issues can cause this error. It may be faster to reach out to Tina support to get an answer to your question. You can contact them here: https://www.tina.com/technical-support/

Regards,

Daniel
