BQ40Z50-R1: BQ40Z50R1-BQstudio window

Max

Part Number: BQ40Z50-R1
Other Parts Discussed in Thread: EV2400

We have designed a BQ40Z50-r1 4S1P Battery Pack.

The Learning cycle has been started.

When the Fuel Gauge window is displayed, In that window the Int Temp is showing 348 DegC.(The thermistor is found to be good)

Also the current is showing 1A in the screen ,when it is not connected to any loads.

During Discharge the Current varies from 1020mA to 987mA when set discharge current is 1A..

when the current value is calibrated it changes to calibrated current value and it does not goes to 0 automatically.

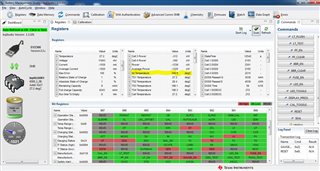

Attaching the Fuel Gauge window for reference.

Expecting the reply at the earliest.

Attached the log file for reference.

Regards

ANANDAN

over 4 years ago

0 Shirish over 4 years ago

TI__Guru 57697 points

Hello Anandan,

The EV2300 firmware version 3.1c is very old and known to have issues. You should use a EV2300 of version 3.1m. Or use the EV2400 and check if you still get the same readings.

0 Max over 4 years ago in reply to Shirish

Intellectual 940 points

We are still getting the same issue when connected to the EV2400.

Int Temp is showing 348 DegC.(The thermistor is found to be good) and current in meter shows -1004 even when not connected to load

0 Shirish over 4 years ago in reply to Max

TI__Guru 57697 points

Hello Anandan,

It looks like some data values related to calibration may have been corrupted. Did you try calibrating the pack?

0 Max over 4 years ago in reply to Shirish

Intellectual 940 points

Yes we have calibrated the Pack and still the error persists

0 Shirish over 4 years ago in reply to Max

TI__Guru 57697 points

Hello Anandan,

Do you get zero current and correct temperature readings right after calibration? If not, then calibration is not correct.

0 Max over 4 years ago in reply to Shirish

Intellectual 940 points

We have calibrated during charging but the gauge IC is not calibrating, Also during discharge if we calibrate the IC gets calibrated and remains in the same value even if it is not connected to loads.

2.In Another We could not able to read the battery Pin Voltage,

Regards

ANANDAN

0 Shirish over 4 years ago in reply to Max

TI__Guru 57697 points

Hello Anandan,

It looks like the data flash is set incorrectly. To get a fresh start, I recommend that you program the default device firmware, then calibrate and check if temperature reports correctly.

0 Max over 4 years ago in reply to Shirish

Intellectual 940 points

Hi Shrish

After loading the Default firmware and calibration, we are getting the same error.

The error is as follows CALCULATED INTERNAL TEMPERATURE SENSOR CORRECTION IS OUT OF RANGE.

Also the current is also Showing -500 even after calibrating and does not goes to zero even not connected to loads.

0 Shirish over 4 years ago in reply to Max

TI__Guru 57697 points

Can you try with the TI EVM?

0 Max over 4 years ago in reply to Shirish

Intellectual 940 points

I am not having Ti EVM. Could you suggest some other way to solve it

0 Shirish over 4 years ago in reply to Max

TI__Guru 57697 points

Hello Anandan,

The next best option is to compare the EVM schematic with your schematic and look for differences that may impact current path. For thermistor, look if connections match the EVM.

0 Max over 4 years ago in reply to Shirish

Intellectual 940 points

Hi Shrish

I have compared the schematics and it is found to be good and also the other packs are running in good manner.

0 Shirish over 4 years ago in reply to Max

TI__Guru 57697 points

Hello Anandan,

If this pack is an exception, then the board may have a short or may have sustained some damage like ESD event. It could even be a bad thermistor or other defective part.
