TPS62901: IQ optimization

Alen Barisic

Part Number: TPS62901

Hello,

we have tested the EVM for the TPS62901RPJR and measured around 6-9uA IQ current.

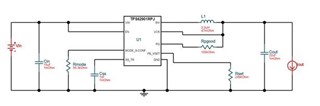

The datasheet mentions around 4uA IQ is possible. We looked up the schematic proposals in the datasheet and asking if with this proposal 4uA IQ is achivable?

Thanks,

Alen

over 3 years ago

+1 Nancy Zhang over 3 years ago

TI__Mastermind 49370 points

Hi Alen,

4uA in the datasheet is typ value. The EVM is configured with external feedback with R1/R2. If you configure internal feedback with only R2 by removing R1 in your attached schematic. You will reduce Iq to around 4uA. It is achivable.

Thanks,

Nancy

0 Tahar Allag over 3 years ago in reply to Nancy Zhang

TI__Mastermind 32350 points

Alen,

As Nancy mentioned, it is achievable.

Please see figure 6-1 and 6-2 for both typical and maximum IQ current.

Thanks!

Tahar

0 Alen Barisic over 3 years ago in reply to Nancy Zhang

TI__Intellectual 1300 points

Hi Nancy,

just to clarify:

the attached schematic above should achive 4uA typ, because there is only external R2 and no R1 right?

The EVM circuit has R1 (453KOhm) and R2 (100KOhm) external.

Thank,

Alen

0 Nancy Zhang over 3 years ago

TI__Mastermind 49370 points

Hi Alen,

Your understanding is correct.

Thanks,

Nancy
