TLC5929: Please provide ThermalPad's dimension

Paul Yeh

Genius 16185 points

Part Number: TLC5929

Hi team,

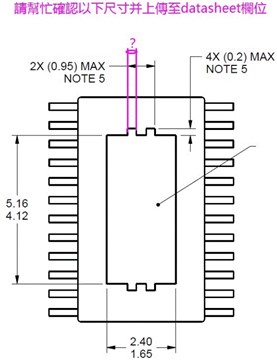

Customer is asking the dimension as purple color highlighted.

Please help.

Thanks

over 3 years ago

0 Hardy Wu over 3 years ago

TI__Genius 12915 points

Hi Paul,

I checked with product team that we would not provide this spec. Do you know why customer care about it? I think this width is not important when drawing the soldering paste of thermal pad.

0 Paul Yeh over 3 years ago in reply to Hardy Wu

TI__Genius 16185 points

Hi Team,

Customer just want to build symbol for company internal approval purpose.

So is there any theory dimension can share with customer? if this width is not important.

Thanks

0 Hardy Wu over 3 years ago

TI__Genius 12915 points

Hi Paul,

You can take it as 0.2 max, and noted this spec may vary large.
