BQ79616-Q1: probing the UART

Priya Nadathur

Part Number: BQ79616-Q1
Other Parts Discussed in Thread: BQ79616

The data sheet lists the max min voltages of the COMLP, COMLN, COMHP and COMHN signals as +/-20V. To probe these signals, what do you recommend as a level translator, differential to single ended converter?

Thanks,

Priya

over 3 years ago

0 Alexander Scheuermann over 3 years ago

TI__Genius 14890 points

Hello Priya,

The COML/H pins are the Vertical InterFace (VIF) signals that send commands and data between BQ79616 devices. They are 2.5V pk-pk signals centered at 2.5V. If you look at them differentially, it would be a 5V pk-pk signal. The +/-20V is the abs max rating of these pins.

0 Alexander Scheuermann over 3 years ago in reply to Alexander Scheuermann

TI__Genius 14890 points

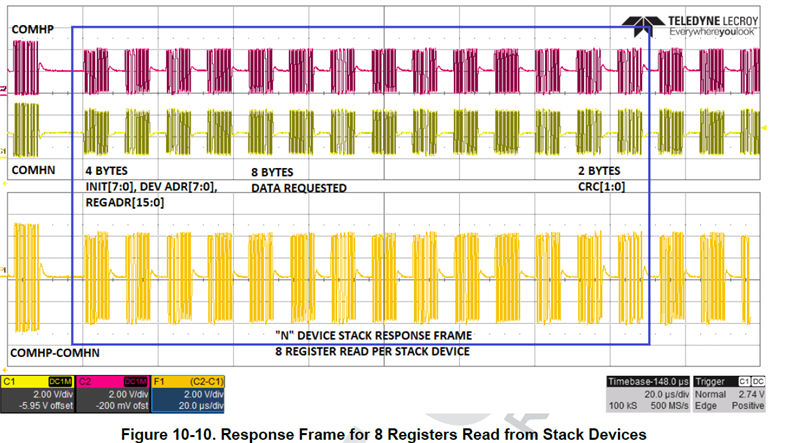

Here is a good example for your reference

0 Priya Nadathur over 3 years ago in reply to Alexander Scheuermann

Intellectual 545 points

Thank you for your reply. Is there a way to convert the UART differential to single ended signal?

+1 Alexander Scheuermann over 3 years ago in reply to Priya Nadathur

TI__Genius 14890 points

Priya,

I don't understand your question. Our VIF communication is described above (and isn't considered to be UART). You can look at either the signle ended signals COMH- or COMH+ and see a 2.5V signal centered at 2.5V, or differentially COMH+ to COMH- and see the 5V signal. Our UART is a 2 wire communication with a transmit (TX) and a receive (RX). I consider both of those to be single-ended already.
