LM5069: Output waveform (0V >1.3V > turn on)

Yusuke Mukuno

Expert 7395 points

Part Number: LM5069

Hi Expert,

My customer is using LM5069MM-2/NOPB.

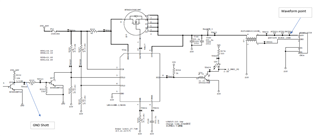

schematics is below,

They have a question about reason of output waveform.

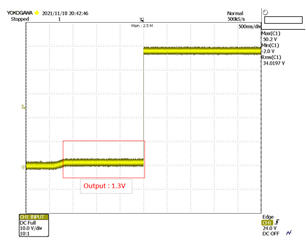

Why does the waveform have 2 step 0V>1.3V>turn on? (at UVLO high)

Also, if UVLO was low, Output voltage was always 1.3V.

Customer want to know the reason of 1.3V

Thanks

Muk

over 3 years ago

+1 Rakesh over 3 years ago

TI__Guru** 105361 points

Hi Muk,

The 1.3V at the output is due to leakage current through an internal 1.0 MΩ resistance from SENSE to VOUT. It is expected as per the device architecture.

As it is very low compared to the operating voltage level, it should not be any concern.

Best Regards,

Rakesh

0 Yusuke Mukuno over 3 years ago in reply to Rakesh

TI__Expert 7395 points

Thanks Rakesh.
