TPS3779: Need design review

Shyam Thillainathan

Prodigy 150 points

Part Number: TPS3779

Hi,

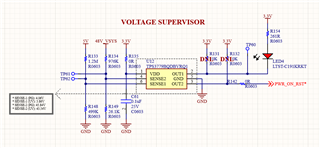

Need design review of the below design:

over 3 years ago

0 Marcoo Z over 3 years ago

TI__Mastermind 19580 points

Hi,

The only issue with the schematic is that the LED diode has a R154 for 261 Ohms. At a fault condition, this will be close to 8-9mA through OUT1. The max current is 5mA for this device. Please increase R154 accordingly to be below 5mA.

0 Shyam Thillainathan over 3 years ago

Prodigy 150 points

Hi,

Got it, will change the resistor to 330R. Forward voltage for the LED is 2V.

Thanks
