BQ78350-R1: Device toggle in BQSTUDIO

PRABHAT RANJAN TRIPATHI

Part Number: BQ78350-R1
Other Parts Discussed in Thread: BQSTUDIO, EV2400

I have made a custom gauge using BQ78350-R1, however, when I am connecting to BQstudio through EVM2400, my device gets detected but it keeps toggling between the device and a blank screen. I am attaching both screenshots.

The BQSTUDIO window keeps toggling between the following two screens. Please do let me know what can be the cause for this.

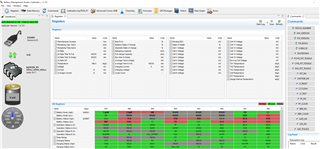

Detected

Not_detected

over 3 years ago

0 Matt Sunna over 3 years ago

TI__Guru* 81034 points

Hi Prabhat,

This means the gauge is losing communications with the EV2400. Where is the VSS for your EV2400 connected to your board? If it is connected to your PACK- and if you are using low-side FETs, you may not have reliable communications because PACK- is floating when the FETs are open.

Best regards,

Matt

+1 PRABHAT RANJAN TRIPATHI over 3 years ago in reply to Matt Sunna

Expert 1102 points

Thanks a lot Matt Sunna for your fast and accurate response. Yes when the VSS is connected to battery ground, the problem gets resolved.
