LM5141-Q1: PACKAGE OUTLINE data check

Kai Lai

Expert 8856 points

Part Number: LM5141-Q1

Hi Team,

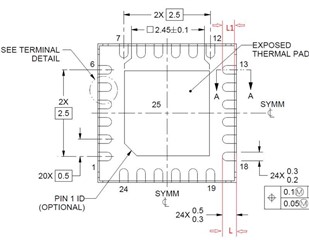

Could you please help to double check L and L1 data of below capture ?

Customer is creating our solution into their pool.

Thanks!
Kai

over 3 years ago

0 Andy Chen over 3 years ago

TI__Mastermind 33765 points

Hi Kai,

L=L1=Min 0.3, typ 0.4, max 0.5mm

B R

Andy

0 Kai Lai over 3 years ago in reply to Andy Chen

TI__Expert 8856 points

Hi Andy,

Thanks for your reply, so customer should take L1 as the consider of the real pad size in IC package, right ?

+1 Andy Chen over 3 years ago in reply to Kai Lai

TI__Mastermind 33765 points

Hi Kai,

Sorry that:

L=Min 0.3, typ 0.4, max 0.5mm

L1=Min 0.295, typ 0.395, max 0.495mm

L1 is actual pad length attach to the PCB

B R

Andy

0 Kai Lai over 3 years ago in reply to Andy Chen

TI__Expert 8856 points

Hi Andy,

Thanks for your support!

Kai
