TPS65279: ILIM selection lower than shown in datasheet

Hi Surya,

Thanks for reaching out. Yes, you can refer to chapter 8.3.7.1 in the datasheet for the formula to calculate RLIM：

Kindly let us know if there is any more concern. Thanks!

BRs

Lucia

HI Lucia,

   Thank you for response on ILIM. pSpice model is not working for running AC analysis. Could you forward me unencrypted model? Could you forward me compensation calculator tool for this device?

Regards

Surya

Hi Surya,

I noticed that the figure 18 in the datasheet do not cover peak current limit which is lower than 5A. I need to recheck it in EVM board. I will give you feedback after checked in EVM. Really thanks for your understanding.

BRs

Lucia

Hi Surya,

We have unencrypted pspice average model for TPS65279V. You can use this Pspice model to simulate.  TPS65279V and TPS65279 have similar compensation parameters.

Thanks! Kindly let us know if there is any more concern.

BRs

Lucia

Hi Lucia,

       This model from web download is not working. Could you check?

Hi Surya,

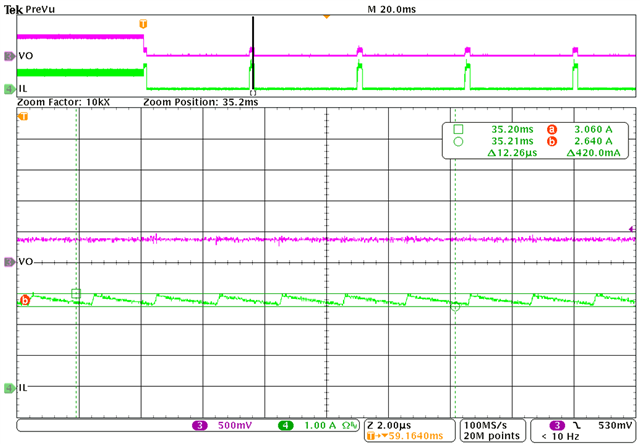

I have checked peak current limit value on TPS65279 EVM board. When Rlimit is 200k, peak current limit is around 3.28A. I also checked when Rlimit is set as 249k, peak current limit will be around 3.06A. Thus, TPS65279 can acheive 3A current limit if you adjust Rlimt. Please also kindly find the waveform when Rlimit =249k.

For the Pspice model, I will check soon and give you response.

Thanks! Kinldy let us know for any further concern.

BRs

Lucia

Hi Surya,

Could you please let us know how the Pspice not working? Could you send us error messages to check?

BRs

Lucia

Hi Lucia,

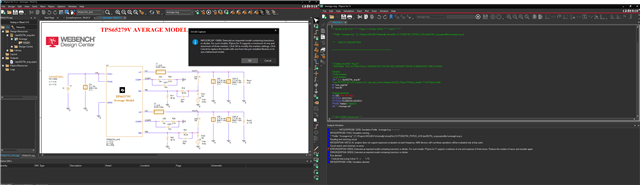

   Below is the error message I am getting while running TPS65279 average model. It is detecting that imported model has transistors or diodes.TPS65270 model running good without any issue.

Regards

Surya

Hi Surya!

Lucia will reply you next Monday!

Shuai

Hi Surya,

Sorry for late response. I also downloaded the model and I could run this model and got the simulation result. Not sure whether it is related with the version of the software. I can have an internal check with our Pspice team to double confirm this.

Hi Surya,

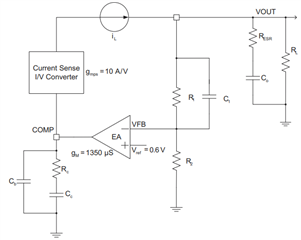

For the compensation tool, currently we have this Pspice model to check AC simulation result. Since your model cannot work, you can also send me your schematic and I can help review. I will also check with Pspice team for the error you met with. Thanks for understanding.

Kindly let us know any more concern. Really thanks!

BRs

Lucia

Hi Lucia,

     I sent you schematic in email.

Regards

Surya

Hi

Lucia will reply you next Monday!

Shuai

Hi Surya,

Thanks for your email. I have received the schematic and let's talk by email. Thanks!

BRs

Lucia

Hi Lucia,

    Could you let me know if you have update on this pSpice model?

Regards

Surya
