TPS6594 : How to connect MSP432E401Y and Scalable PMICs GUI on PC

OBUCHI YOHEI

Part Number: MSP432E401Y
Other Parts Discussed in Thread: MSP-EXP432E401Y

I am going to configurate TPS6594 PMIC NVM from Scalable PMICs GUI by MSP-EXP432E401Y development kits through I2C communication.
But connection between Scalable PMICs GUI and MSP-EXP432E401Y is failed.

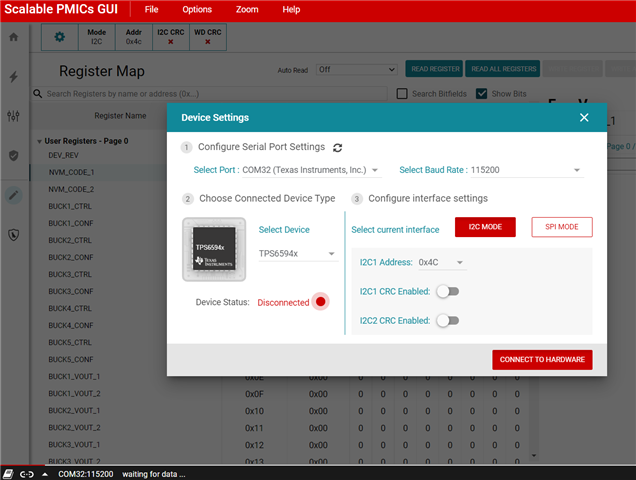

I could find COM port but Device status is always disconnected.

Is there anything else that needs to be done?

Scalable PMICs GUI version: 3.0.0

Port setting on DevMgr is following.

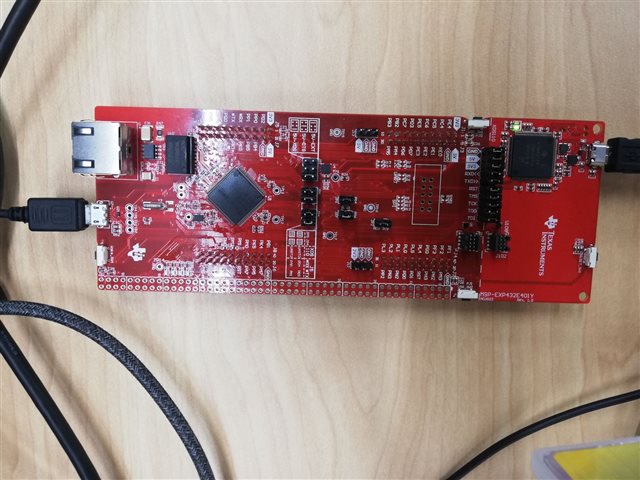

Connection and jumper setting is following.

I connect both USBs to PC.
I don't change jumper from default setting.

over 3 years ago

0 Jace H over 3 years ago

TI__Guru 56685 points

Hello,

I've moved your post to the Power Management forum as they own PMICs GUI you are referring to.

0 Chris Sterzik over 3 years ago

TI__Guru 63751 points

Hello,

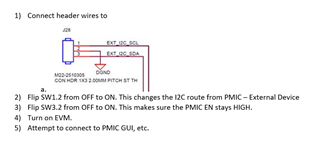

The MSP is attempting to talk to the PMIC which is not present. You must connect the I2C lines (PB2,PB3) to the I2C lines of the PMIC. In the case you are describing above the I2C lines are floating because there are no pullups on the I2C and the MSP is waiting for the clock line to be released.

Regards,

Chris

0 OBUCHI YOHEI over 3 years ago in reply to Chris Sterzik

Prodigy 210 points

Hi Chris

Thank you for reply.

I connected PB2 and PB3 and GND between MSP and EVM.
But phenomenon is not changed...

Q1. This connection is correct?

Q2. How to resolve "no pullups on the I2C"?

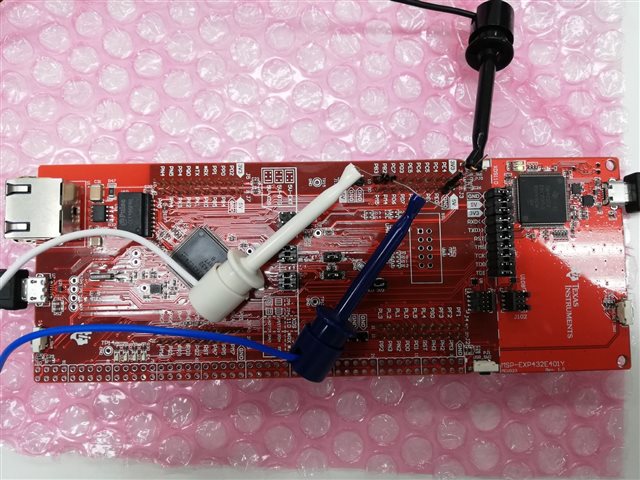

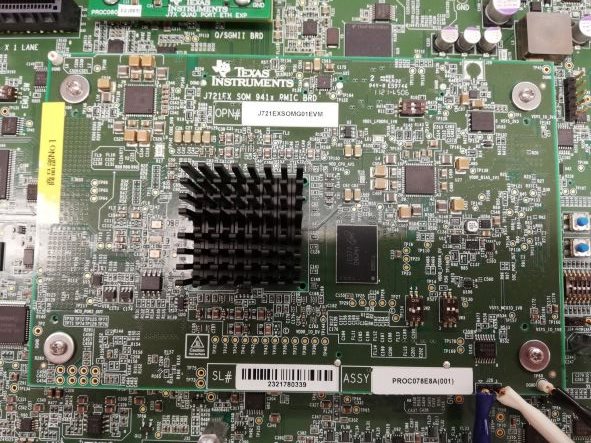

Th connection is following.
White:SDA(PB3) Blue:SCL(PB2) Black:GND
