BQ3050: RESET Condition

bhupendra suthar

Part Number: BQ3050
Other Parts Discussed in Thread: GPCCEDV

Hello Team,

Looking solution for following queries :

1. Battery Pack RSOC was 10% before Reset , it becomes 0 after reset...why ? I changed Battery Mode register and to reflect its value , RESET Executed .

2. When should be use RESET command ? purpose..

3. Do I need to upload .senc file and Calibration values after RESET ?

Thanks,

over 3 years ago

0 Jose Couso over 3 years ago

TI__Mastermind 27321 points

Hello,

The bq3050 estimates the initial capacity of a battery pack at device reset, which is the case when battery cells are first attached to the application circuit. The initial Full Charge Capacity (FCC) is a direct copy of the data flash parameter Full Charge Capacity. The initial RM and RSOC are estimated using the open circuit voltage (OCV) characteristics of the programmed Li-ion chemistry (default ID0100), DOD at EDV2, and Qmax Pack. This gives a reasonably accurate RM and RSOC, however, battery capacity learning is required in order to find the accurate FCC, RM and RSOC. During battery capacity learning, Full Charge Capacity and DOD at EDV2 will be learned and updated.

Qmax is used for initial capacity (RM and RSOC) estimate in conjunction with the cell voltages and programmed chemistry information when device resets.

When should be use RESET command ? purpose..

One could be to return to SEALED mode.

Do I need to upload .senc file and Calibration values after RESET ?

No need to upload .senc file neither calibration after RESET.

Regards,
Jose Couso

0 bhupendra suthar over 3 years ago in reply to Jose Couso

Intellectual 515 points

1. RESET does not return Battery into Sealed mode. I tried with the two battery BMS.

2. after RESET , RSOC is continuously showing 0% even after cell charge voltage is above 3.7V. don`t know why ?

3. RCA and FD bit is still on.

0 Jose Couso over 3 years ago in reply to bhupendra suthar

TI__Mastermind 27321 points

Hello Bhupendra,

This gauges are not recommended to RESET frequently.

The reason why you might be seeing a 0% RSOC is because maybe an OCV measurement was taken at a high DOD point where Remaining Capacity might be close to zero or zero.

Would you please share your log file to better debug this issue?

Regards,
Jose Couso

0 bhupendra suthar over 3 years ago in reply to Jose Couso

Intellectual 515 points

Hello Jose,

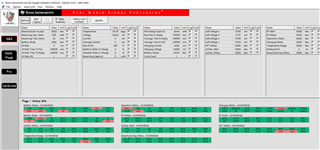

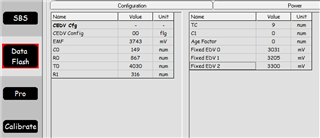

We are doing RESET , because we are not aware about for which parameter need to execute RESET Condition.....

Here , i am attaching .gg file FYR.

Pls. let us know , if you need anything else.... bQ3050-7Ah.zip

FYI:Here is my Battery (4S) Design requirement :

Max. Pack Charge Voltage : 16.4 ( Cell Voltage = 4100mV Max.) , EDV Fix method.

Max. Pack Discharge Voltage : 12.8 ( Cell Voltage = 3200mV max ) after that DSG MOSFET must be OFF to provide 0V pack output.

0 Jose Couso over 3 years ago in reply to bhupendra suthar

TI__Mastermind 27321 points

Hello Bhupendra,

Would you please attach your log file (this file keeps record of battery status, flags, voltage, current, etc).

Regards,
Jose

0 bhupendra suthar over 3 years ago in reply to Jose Couso

Intellectual 515 points

Pls. find attached one.

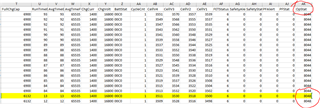

I See the Jump when Cell voltage discharge crosses to EDV2 Threshold....Should I reduce EDV2 threshold from 3500mV to 3300mV ?

Fullscreen 0207.DischargeNEWLogdata7A_with%.log Download
