BQ40Z50: Auto Calibration and Board Offset

Intellectual 2060 points

Part Number: BQ40Z50
Other Parts Discussed in Thread: BQSTUDIO

Hi Team,

1. May I know if the Auto Calibation includes "Board offest"? (Note: form this E2E thread, it seems do the CC offset only)

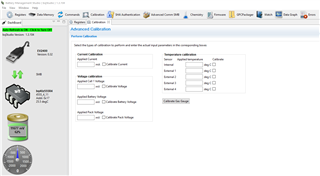

2. As far as I know, Bqstudio doesn't have "Board offset" section in Advanced Calibration section(see the below). Could I know what is the reason to cancel "Board offset" in bqstudio?

over 3 years ago

0 Wyatt Keller over 3 years ago

TI__Guru** 105770 points

Hello Cheer,

The board offset can be used before using the calibration tab if there is a known offset due to trace length differences or other board/system level offsets. It's not required to be used.

Sincerely,

Wyatt Keller

0 HY over 3 years ago in reply to Wyatt Keller

TI__Intellectual 2060 points

Hi Waytt,

Thanks for the feedback.

a). So, Auto Calibration is not including Board Offset, right?

b). May I know what is "the calibration tab"? Can "the calibration tab" be used/executed by bqstudio or by slua734a?

c). As I know, board offset only considers the board/PCB of the battery. Why should it consider the system-side?

0 Wyatt Keller over 3 years ago in reply to HY

TI__Guru** 105770 points

Hello Cheer,

Auto Calibration will not be the board offset, the gauge cannot calculate the board offset.

The calibration tab is in bqstudio to help with the calibration process. It's in the top header of the GUI.

It should consider anything in related to the pathway for the SRN and SRP traces.

Sincerely,

Wyatt Keller

0 HY over 3 years ago in reply to Wyatt Keller

TI__Intellectual 2060 points

Hi Waytt,

Got it. One more thing, just double confirm with you, the calibration tab is in bqstudio which can't support to calibrate Board Offset, am I right?

0 Wyatt Keller over 3 years ago in reply to HY

TI__Guru** 105770 points

Hello Cheer,

That's correct, the board offset has to be manually input.

Sincerely,

Wyatt Keller
