UCC28950-Q1: UCC28950PWR

Laxmi Maanasa Kalla

Part Number: UCC28950-Q1
Other Parts Discussed in Thread: UCC28950

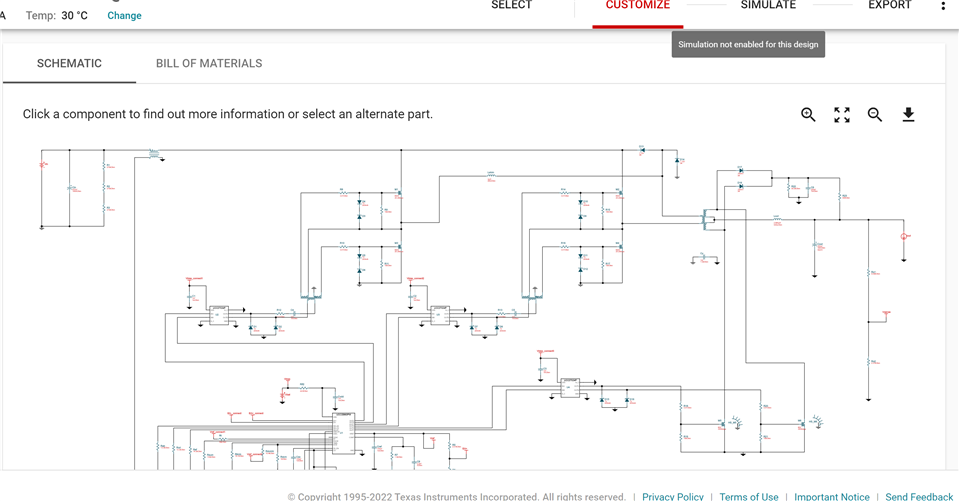

I cant simulate the circuit with the above part number on webench power designer.

And the Gerber files shared with the converter in below link are empty. I tried to open the schematic file and it was empty.

TIDC317.ZIP -> HVPSFB Base Board -> RevB -> Gerbers -> {TEX043}HVPSFBrB-updated.zip -> SCH_(TEX04)HVPSFBrB.zip ->HVPSFB_RevB_renamed_parts.sch

https://www.ti.com/tool/TIDM-PSFB-DCDC

over 3 years ago

0 Mike O' over 3 years ago

TI__Guru* 86266 points

Hello,

The Webench design tool will design and simulate a design based on your input and output requirements. I don't believe the tool is capable of importing and simulating a reference design.

If you want to simulate the reference design. You can use the existing PSpice or tina model for the UCC28950 found at the the following link. You will have to down load it and modify based on the reference design you are trying to simulate.

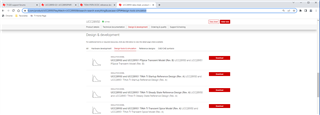

https://www.ti.com/product/UCC28950?keyMatch=UCC28950&tisearch=search-everything&usecase=GPN#design-tools-simulation

Regards,

Power management

Power management forum
