USB-C-PD-DUO-EVM: Has anyone found the mating (male?) connector for this weird-o Foxcon connector

Andrew Ward

Prodigy 60 points

Part Number: USB-C-PD-DUO-EVM

OK.. Here are the Spec sheets for the Connector on the EVM. But I can't find the raw Plug end anywhere

Does anyone have any leads?

8228.JPD1135-509-7F.pdf

8037.DC-PowerJack-JPD1135-509-7F-FOXCONN-JPD1135-509-7F.pdf

over 3 years ago

0 Kevin Kosta over 3 years ago

TI__Mastermind 18045 points

Hi Andrew,

Thanks for reaching out on E2E!

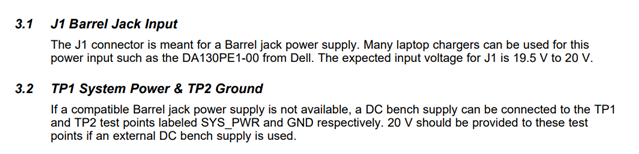

TI does not provide the barrel jack (Male connector for this device). An example jack to buy can be seen in section 3.1 posted below in the EVMs datasheet.

Alternatively, you can use a DC bench supply.

I hope this helps!

Thank you,

Kevin

0 Andrew Ward over 3 years ago in reply to Kevin Kosta

Prodigy 60 points

Kevin,

You have not answered my question. You have only re-stated the obvious.

Please refer BACK to the original question. WHAT is a Part number and Manufacturer of a mating connector for the Foxcon jack. I do NOT want a part number for a full power supply. Just he compatible connector. Please.

0 Kevin Kosta over 3 years ago in reply to Andrew Ward

TI__Mastermind 18045 points

Hi Andrew,

Sorry for the confusion.

We do not have any insight on this.

Any plug that fits the jack should work.

Thank you,

Kevin
