TPS7A45: Figure 15: shutdown pin current vs. temperature

Kevin Ginunas

Part Number: TPS7A45

Hello,

Can you please share the correct plot for Figure 15 in the datasheet for /SHDN current vs. temperature? It looks like Figure 13 was incorrectly copied here instead.

Thank you,

-Kevin Ginunas

over 2 years ago

0 Nick Butts over 2 years ago

TI__Guru 50025 points

Hi Kevin,

I'm looking into this. I'll get back to you in 1-2 business days.

Regards,

Nick

+1 Nick Butts over 2 years ago

TI__Guru 50025 points

Hi Kevin,

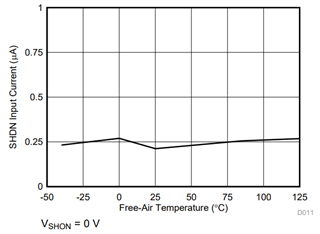

You are correct, Figure 13 was incorrectly copied where Figure 15 should have been. Here is the correct plot. I'll make a note to get this updated.

Regards,

Nick
